SY7304DBC - Silergy

Description: DC-DC Converters Step-Up Adjustable 1 3V 33V 0.6V 33V 4A DFN-10 RoHS

Download SY7304DBC Model

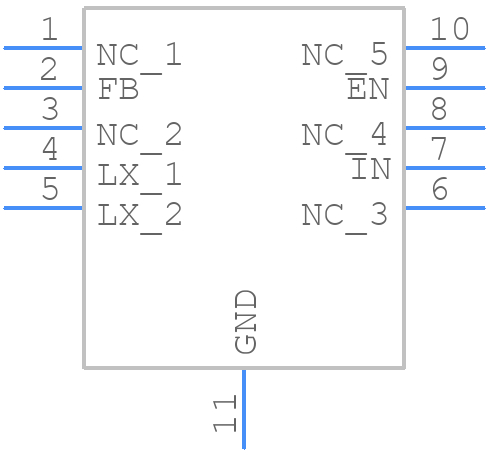

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SY7304DBC - Silergy PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN3x3-10
click to zoom
3D Models
SY7304DBC - Silergy  - 3D model - Small Outline No-lead - DFN3x3-10
click to zoom

SY7304DBC Details

  • Manufacturer Part Number:

    SY7304DBC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    35 Weeks

  • Manufacturer:

    Silergy Corporation

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Input Voltage-Max:

    33 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    S-PDSO-N10

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    4 A

  • Output Voltage-Max:

    33 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    1200 kHz

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

SY7304DBC Frequently Asked Questions (FAQs)

  • A good PCB layout for the SY7304DBC should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper pour connectivity to dissipate heat. Avoid routing high-current traces under the device.
  • To ensure stable output voltage regulation, ensure that the input voltage is within the recommended range, and the output capacitor is of sufficient value and type (e.g., X5R or X7R ceramic). Also, minimize the distance between the output capacitor and the SY7304DBC.
  • The maximum safe operating junction temperature for the SY7304DBC is 150°C. Exceeding this temperature may reduce the device's lifespan or cause permanent damage.
  • While the SY7304DBC is a high-quality device, it may not meet the specific requirements of high-reliability or automotive applications. Check the device's AEC-Q100 qualification and PPAP (Production Part Approval Process) documentation to ensure compliance with your specific application's requirements.
  • To troubleshoot output voltage deviations or oscillations, check the input voltage, output capacitor value and type, and PCB layout. Ensure that the device is properly decoupled, and the output capacitor is placed close to the device. Also, verify that the input voltage is within the recommended range.
