A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the IC is recommended. This helps to dissipate heat efficiently and reduces thermal resistance.
To ensure stable output voltage regulation, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, decoupling capacitors should be placed close to the IC, and the input capacitor should be rated for the maximum input voltage.
Although the datasheet specifies a maximum input voltage of 18V, it's recommended to limit the input voltage to 15V to ensure reliable operation and prevent damage to the IC.
While the SY8286ARAC is rated for operation up to 85°C, it's essential to consider the thermal derating curve and ensure that the IC does not exceed the maximum junction temperature (150°C) to prevent damage or malfunction.
To troubleshoot issues, start by verifying the input voltage, output voltage, and current. Check for proper PCB layout, component values, and decoupling capacitor placement. If issues persist, consult the datasheet and application notes or contact Silergy Corporation's technical support.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SY8286ARAC Overview

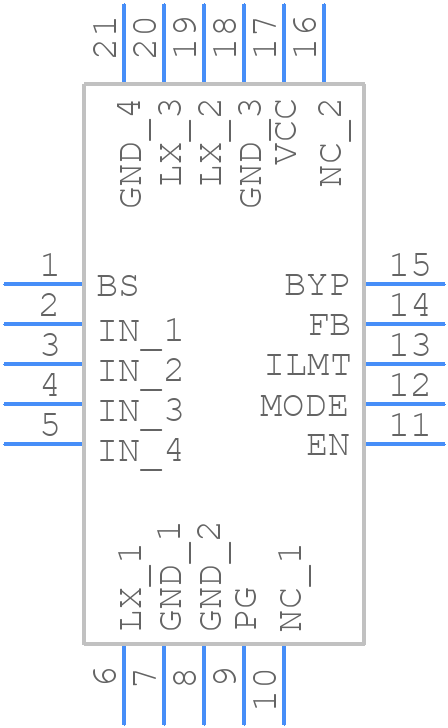

Use the download button to access the SY8286ARAC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SY828,
or try a keyword search, such as Switching Regulator or Controllers
