- Datasheet
- Stock & Prices $ Price & Stock for SY87739LHY
- Part Number SY87739LHY
- Manufacturer Microchip
- Pin Count 33
- Part Category Integrated Circuit
- Package Category Quad Flat Packages

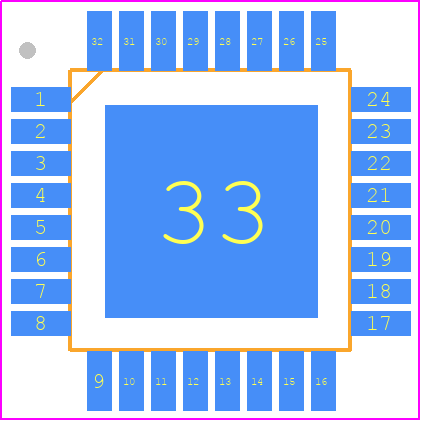

- Footprint Name Quad Flat Packages - tqfp_32
- Released Date Feb 4, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
SY87739LHY Details
-
Manufacturer Part Number:
SY87739LHY
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
7 X 7 MM, LEAD FREE, TQFP-32
-
Pin Count:
32
-
Manufacturer Package Code:
TQFP-32
-
Country Of Origin:
Philippines
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
8 Weeks
-
Manufacturer:
Microchip Technology Inc
SY87739LHY Frequently Asked Questions (FAQs)
-
Microchip provides a recommended PCB layout in the datasheet, but it's essential to follow good high-speed design practices, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for the high-speed signals.
-
To ensure reliable operation, follow the recommended operating conditions, including voltage and temperature ranges. Additionally, consider using thermal management techniques, such as heat sinks or thermal interfaces, to maintain a stable temperature.
-
The built-in termination resistors are designed for specific impedance values and may not be suitable for all applications. Be aware of the resistor values and their impact on signal integrity, and consider using external termination resistors if necessary.
-
Use a combination of tools, such as oscilloscopes, logic analyzers, and power analyzers, to troubleshoot issues. Consult the datasheet and application notes for guidance on debugging and troubleshooting techniques specific to the SY87739LHY.
-
Yes, the SY87739LHY has specific power sequencing requirements to ensure proper operation. Follow the recommended power-up and power-down sequences outlined in the datasheet to avoid damage or malfunction.
Trust Checks
Expert Contribution
System Verified
Community Approved
SY87739LHY Overview

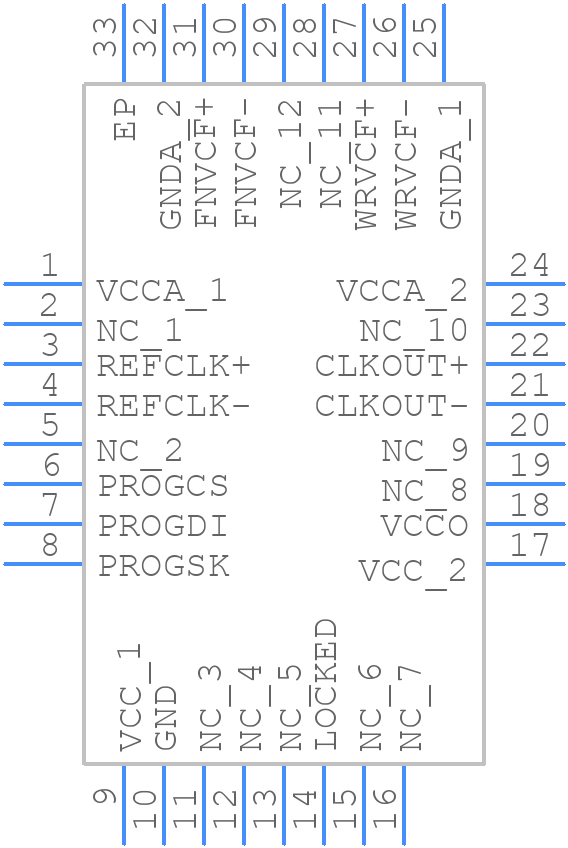

Use the download button to access the SY87739LHY schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SY877,
or try a keyword search, such as ATM/SONET/SDH ICs
