SY88722VKG - Microchip

Description: Laser Drivers 5V/3.3V 622Mbps Laser Diode Driver with Output Enable

Download SY88722VKG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

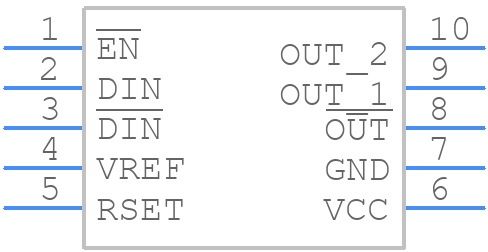

SY88722VKG - Microchip - PCB symbol
click to zoom
PCB Footprints
SY88722VKG - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 10-MSOP MM
click to zoom
3D Models
SY88722VKG - Microchip - 3D model - Small Outline Packages - 10-MSOP MM
click to zoom

SY88722VKG Details

  • Manufacturer Part Number:

    SY88722VKG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    3 X 3 MM, LEAD FREE, MSOP-10

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATES AT 5V SUPPLY

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    2.97 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3 mm

SY88722VKG Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the SY88722VKG evaluation board documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The SY88722VKG is a highly configurable device. Engineers can use Microchip's ClockWorks software tool to configure the device for their specific application, including setting output frequencies, voltage levels, and other parameters.
  • The SY88722VKG has a high power dissipation rating, so thermal management is crucial. Engineers should ensure good airflow, use thermal vias, and consider heat sinks or thermal pads to keep the device within its recommended operating temperature range.
  • Microchip provides a troubleshooting guide in the SY88722VKG datasheet, which covers common issues and their solutions. Engineers can also use ClockWorks software to monitor device performance and diagnose problems.
  • The SY88722VKG is designed to minimize EMI and RFI. Engineers should follow proper PCB layout and routing guidelines, use shielding, and consider adding EMI filters or chokes to ensure compliance with regulatory requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SY88722VKG Overview

Use the download button to access the SY88722VKG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SY887, or try a keyword search, such as Other Interface ICs
