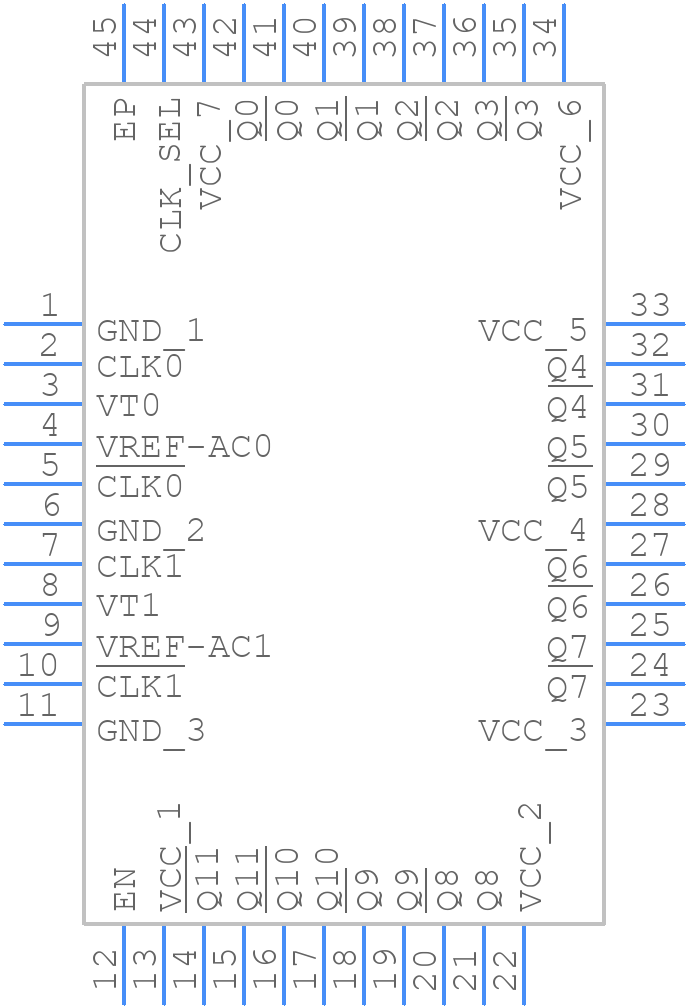

SY89112UMY - Microchip

SY89112UMY Details

• Manufacturer Part Number:

  SY89112UMY

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Pin Count:

  44

• Manufacturer Package Code:

  VQFN-44

• Country Of Origin:

  Philippines, Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Factory Lead Time:

  8 Weeks

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  8

• Additional Feature:

  IT CAN ALSO OPERATE WITH 3.3V SUPPLY

• Family:

  89112

• Input Conditioning:

  DIFFERENTIAL MUX

• JESD-30 Code:

  S-XQCC-N44

• JESD-609 Code:

  e3

• Length:

  7 mm

• Logic IC Type:

  LOW SKEW CLOCK DRIVER

• Moisture Sensitivity Level:

  2

• Number of Functions:

  1

• Number of Terminals:

  44

• Number of True Outputs:

  12

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  OPEN-EMITTER

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC44,.28SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TRAY

• Propagation Delay (tpd):

  0.55 ns

• Qualification Status:

  Not Qualified

• Same Edge Skew-Max (tskwd):

  0.025 ns

• Seated Height-Max:

  1 mm

• Supply Voltage-Max (Vsup):

  2.625 V

• Supply Voltage-Min (Vsup):

  2.375 V

• Supply Voltage-Nom (Vsup):

  2.5 V

• Surface Mount:

  YES

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  7 mm

• fmax-Min:

  2000 MHz
