- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for SY89421VZC
- Part Number SY89421VZC
- Manufacturer Microchip
- Pin Count 20
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - 20 LEAD SOIC .300" WIDE (Z20-1)
- Released Date Nov 10, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
SY89421VZC Details
-
Manufacturer Part Number:
SY89421VZC
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Package Description:
SOIC-20
-
Pin Count:
20
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Microchip Technology Inc
-
Additional Feature:
IT CAN ALSO OPERATE FROM A 4.75V TO 5.25V SUPPLY
-
Analog IC - Other Type:
PHASE LOCKED LOOP
-
JESD-30 Code:
R-PDSO-G20
-
JESD-609 Code:
e0
SY89421VZC Frequently Asked Questions (FAQs)
-
A good PCB layout for the SY89421VZC should prioritize signal integrity, minimize noise, and ensure proper power supply decoupling. Micrel recommends using a 4-layer PCB with a solid ground plane, placing the device near the power supply, and using short, direct traces for the output signals.
-
To ensure reliable operation over the full temperature range (-40°C to 85°C), it's essential to follow proper thermal design guidelines, such as providing adequate heat sinking, using a thermally conductive PCB material, and avoiding thermal hotspots. Additionally, ensure that the device is operated within its specified voltage and current ratings.
-
Not using the recommended input capacitor values can lead to reduced performance, increased noise, and potential instability. The input capacitors help filter out noise and ensure a stable input voltage. Using smaller or larger capacitors than recommended can compromise the device's performance and reliability.
-
While the SY89421VZC is a high-performance device, it may not meet the specific requirements of high-reliability or aerospace applications. Micrel recommends using devices specifically designed and qualified for these applications, such as those with enhanced screening, testing, and certification.
-
To troubleshoot issues with the SY89421VZC, start by verifying the input voltage, output load, and PCB layout. Check for proper decoupling, signal integrity, and thermal design. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue. Consult Micrel's application notes and technical support resources for guidance.
Trust Checks
Community Provided
System Verified
Community Approved
SY89421VZC Overview

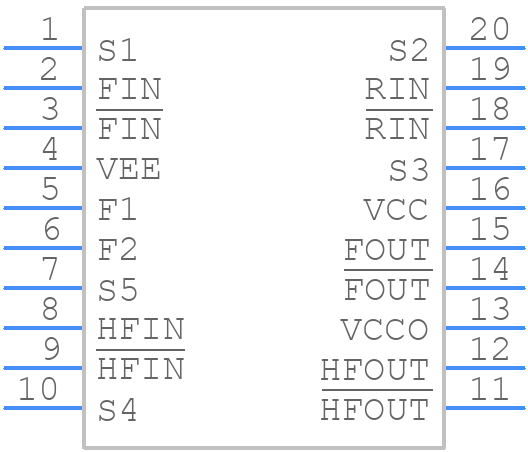

Use the download button to access the SY89421VZC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SY894,
or try a keyword search, such as PLL or Frequency Synthesis Circuits
