SYBP-1950+ - Mini-Circuits

Description: Signal Conditioning Lumped LC Band Pass Filter, 1700 - 2200 MHz, 50?

Download SYBP-1950+ Model

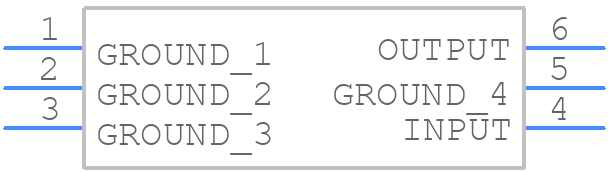

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SYBP-1950+ - Mini-Circuits PCB footprint - Other - Other - SYBP-1950+-1
click to zoom
3D Models
SYBP-1950+ - Mini-Circuits  - 3D model - Other - SYBP-1950+-1
click to zoom

SYBP-1950+ Details

  • Manufacturer Part Number:

    SYBP-1950+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Average Input Power:

    10 W

  • Center or Cutoff Frequency (fo/fc):

    1950 MHz

  • Filter Type:

    BAND PASS FILTER

  • Height:

    3.81 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    2.2 dB

  • Length:

    7.87 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    1

  • Number of Sections-Min:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Impedance:

    50 OHM Ω

  • VSWR:

    1.9

  • Width:

    6.35 mm
