Part Image

SYBP-92+ - Mini-Circuits

Description: Lumped LC Band Pass Filter, 800 - 1000 MHz, 50Ω

Download SYBP-92+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

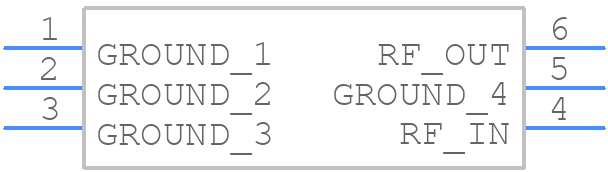

Symbol
SYBP-92+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
SYBP-92+ - Mini-Circuits PCB footprint - Other - Other - TT1423_7.87x6.35
click to zoom
3D Models
SYBP-92+ - Mini-Circuits - 3D model - Other - TT1423_7.87x6.35
click to zoom

SYBP-92+ Details

  • Manufacturer Part Number:

    SYBP-92+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.69

  • Average Input Power:

    7 W

  • Center or Cutoff Frequency (fo/fc):

    900 MHz

  • Filter Type:

    BAND PASS FILTER

  • Height:

    3.81 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    2.8 dB

  • Length:

    7.87 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    1

  • Number of Sections-Min:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • VSWR:

    1.6

  • Width:

    6.35 mm

SYBP-92+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance, especially at high frequencies.
  • Impedance matching can be achieved using a combination of series and shunt resistors, capacitors, and inductors. Mini-Circuits provides a impedance matching calculator on their website, which can help you determine the required components and values.
  • The maximum power handling of the SYBP-92+ is not explicitly stated in the datasheet. However, according to Mini-Circuits' application notes, the device can handle up to 1W of continuous power. It's essential to derate the power handling based on the operating frequency and temperature.
  • Yes, the SYBP-92+ can be used in switching applications, but it's essential to ensure that the switching frequency is within the device's specified frequency range. Additionally, the device's power handling and thermal characteristics should be considered to avoid overheating and damage.
  • Common issues with the SYBP-92+ include poor insertion loss, high return loss, and overheating. Troubleshooting steps include checking the PCB layout and footprint, ensuring proper impedance matching, and verifying the power handling and thermal characteristics. Mini-Circuits' application notes and technical support can also provide guidance on troubleshooting and resolving issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SYBP-92+ Overview

Use the download button to access the SYBP-92+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SYBP-, or try a keyword search, such as General Purpose Passive Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
