SYDC-18-23+ footprint, schematic symbol and 3D model by Mini-Circuits

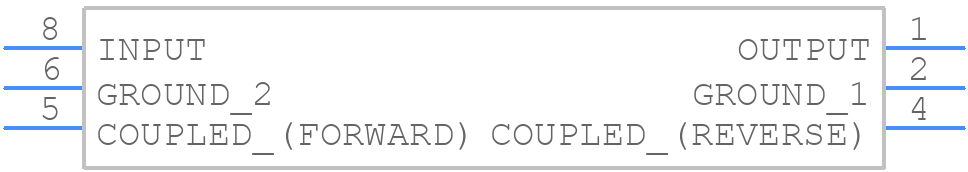

Symbol

click to zoom

PCB Footprints

SYDC-18-23+ - Mini-Circuits PCB footprint - Other - Other - SYDC-18-23+-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SYDC-18-23+
Part Number SYDC-18-23+
Manufacturer Mini-Circuits
Pin Count 6
Part Category Circulator or Directional Coupler
Package Category Other
Footprint Name Other - SYDC-18-23+-2
Released Date Aug 30, 2026
Last Modified Date Aug 30, 2026 12:48 PM UTC
Pinout / Pin List Click Here (Member Only)

SYDC-18-23+ Details

Manufacturer Part Number:
SYDC-18-23+
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Manufacturer:
Mini-Circuits
RF/Microwave Device Type:
BI-DIRECTIONAL COUPLER

Trust Checks

Expert Contribution

System Verified

Community Approved

SYDC-18-23+ Overview

Use the download button to access the SYDC-18-23+ schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like SYDC-, or try a keyword search, such as RF/Microwave Couplers
