SYDC-20-31HP+ - Mini-Circuits

SYDC-20-31HP+ Frequently Asked Questions (FAQs)

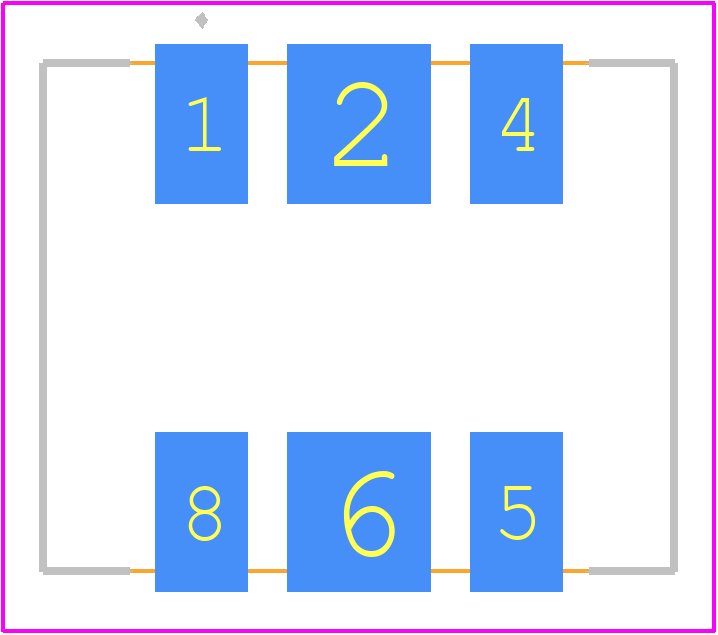

• What is the recommended PCB layout and footprint for optimal performance?
  Mini-Circuits provides a recommended PCB layout and footprint in their application notes and evaluation board documentation. It's essential to follow these guidelines to ensure optimal performance, especially for high-frequency applications.
• How do I achieve the best possible noise figure with this device?
  To achieve the best possible noise figure, ensure that the input and output impedances are well-matched, and the device is operated within its recommended operating conditions. Additionally, use a high-quality, low-noise power supply and minimize the number of components in the signal path.
• What is the maximum operating temperature range for this device?
  While the datasheet specifies an operating temperature range of -40°C to +85°C, it's essential to note that the device's performance may degrade at higher temperatures. For optimal performance, it's recommended to operate the device within a temperature range of -20°C to +70°C.
• Can I use this device in a switching application, and if so, what are the limitations?
  Yes, the SYDC-20-31HP+ can be used in switching applications, but it's essential to ensure that the device is not subjected to excessive voltage or current transients. The device's switching speed and frequency should also be within the recommended specifications to avoid overheating or damage.
• What is the recommended ESD protection for this device?
  Mini-Circuits recommends using ESD protection devices, such as TVS diodes or ESD suppressors, to protect the SYDC-20-31HP+ from electrostatic discharge. It's essential to follow proper ESD handling and storage procedures to prevent damage to the device.
