SYDC-20-62HP+ - Mini-Circuits

Description: RF Directional Coupler Military 10MHz ~ 540MHz 19.8 ± 0.5dB 25W 8-SMD, No Lead

Download SYDC-20-62HP+ Model
Schematic

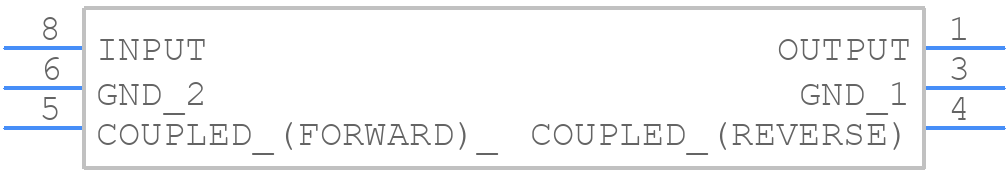

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SYDC-20-62HP+ - Mini-Circuits PCB footprint - Other - Other - SYDC-20-62HP+-2
click to zoom
3D Models
SYDC-20-62HP+ - Mini-Circuits  - 3D model - Other - SYDC-20-62HP+-2
click to zoom

SYDC-20-62HP+ Details

  • Manufacturer Part Number:

    SYDC-20-62HP+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.6

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    43.98 dBm

  • Insertion Loss-Max:

    0.6 dB

  • JESD-609 Code:

    e4

  • Operating Frequency-Max:

    540 MHz

  • Operating Frequency-Min:

    10 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    BI-DIRECTIONAL COUPLER

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

  • VSWR-Max:

    1.1
