SYK-2R+ - Mini-Circuits

Description: 2X SMT Multiplier, Output Freq 20 - 2000 MHz

Download SYK-2R+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

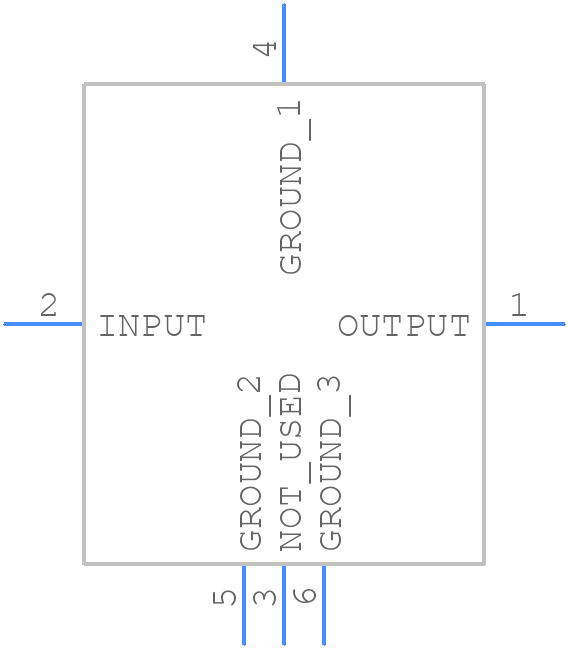

SYK-2R+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
SYK-2R+ - Mini-Circuits PCB footprint - Other - Other - TTT167
click to zoom
3D Models
SYK-2R+ - Mini-Circuits - 3D model - Other - TTT167
click to zoom

SYK-2R+ Details

  • Manufacturer Part Number:

    SYK-2R+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    16 dB

  • Input Power-Max (CW):

    16 dBm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    1000 MHz

  • Operating Frequency-Min:

    10 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC6/8,.37X.5,175

  • RF/Microwave Device Type:

    FREQUENCY DOUBLER

  • Surface Mount:

    YES

  • Terminal Finish:

    GOLD OVER NICKEL

SYK-2R+ Frequently Asked Questions (FAQs)

  • The maximum power handling of the SYK-2R+ is 1 watt. Exceeding this power limit can cause damage to the device.
  • Yes, the SYK-2R+ can be used as a switch or an attenuator. It has a high isolation of 60 dB and an attenuation range of 0-30 dB.
  • The operating temperature range of the SYK-2R+ is -40°C to +85°C. Operating outside this range may affect the device's performance and reliability.
  • Yes, the SYK-2R+ is suitable for high-frequency applications up to 18 GHz. It has a low insertion loss of 1.5 dB and a high return loss of 15 dB.
  • Yes, the SYK-2R+ is designed to work in a 50-ohm system. It has a 50-ohm input and output impedance, making it suitable for most RF and microwave applications.
