Part Image

SYM-18H+ - Mini-Circuits

Description: High IP3 Frequency Mixer

Download SYM-18H+ Model

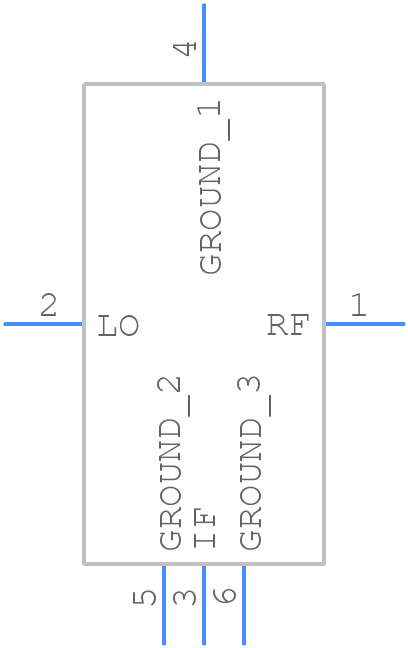

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SYM-18H+ - Mini-Circuits PCB footprint - Other - Other - SYM-18H+-1
click to zoom
3D Models
SYM-18H+ - Mini-Circuits  - 3D model - Other - SYM-18H+-1
click to zoom

SYM-18H+ Details

  • Manufacturer Part Number:

    SYM-18H+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6

  • Additional Feature:

    HIGH ISOLATION

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    8.9 dB

  • Input Power-Max (CW):

    23 dBm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    1800 MHz

  • Operating Frequency-Min:

    5 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC6/8,.37X.5,170

  • RF/Microwave Device Type:

    DOUBLE BALANCED

  • Surface Mount:

    YES

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

  • VSWR-Max:

    2.61

SYM-18H+ Frequently Asked Questions (FAQs)

  • A good grounding scheme is crucial for the SYM-18H+. It's recommended to use a solid ground plane on the PCB, and to connect the device's ground pins to the ground plane using vias. Additionally, keep the signal traces as short as possible and use a 50-ohm impedance-controlled layout to minimize reflections.
  • The SYM-18H+ requires a bias voltage of +12V to +15V and a bias current of 100mA to 150mA. Ensure that the bias voltage is well-regulated and filtered to prevent noise and ripple from affecting the device's performance.
  • The SYM-18H+ can handle up to 1W of input power. Exceeding this limit can cause damage to the device. It's essential to ensure that the input power is within the specified limit to prevent damage and ensure reliable operation.
  • Common issues with the SYM-18H+ can often be attributed to poor PCB layout, inadequate grounding, or incorrect biasing. Check the PCB layout for any signal integrity issues, ensure the device is properly biased, and verify that the input and output impedances are matched to 50 ohms.
  • Yes, the SYM-18H+ can be used in a push-pull configuration to increase the power handling. However, this requires careful design and layout considerations to ensure that the devices are properly matched and biased. Consult the application note from Mini-Circuits for more information.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SYM-18H+ Overview

Use the download button to access the SYM-18H+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SYM-1, or try a keyword search, such as RF/Microwave Mixers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
