SYM-2500 - Mini-Circuits

Description: 1 MHz - 2500 MHz RF/MICROWAVE DOUBLE BALANCED MIXER, 9.8 dB CONVERSION LOSS-MAX

Download SYM-2500 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

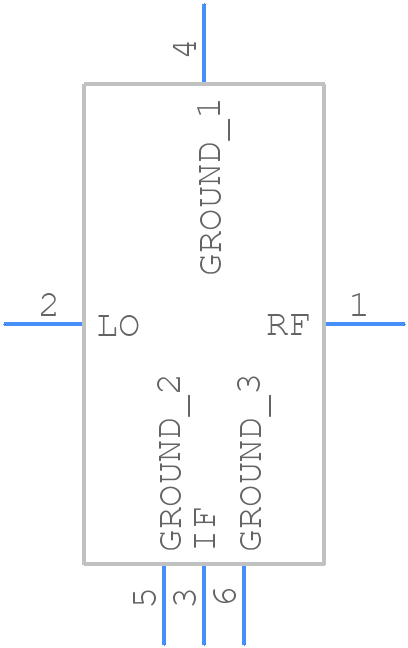

Symbol
SYM-2500 - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
SYM-2500 - Mini-Circuits PCB footprint - Other - Other - SYM-2500-3
click to zoom
3D Models
SYM-2500 - Mini-Circuits - 3D model - Other - SYM-2500-3
click to zoom

SYM-2500 Details

  • Manufacturer Part Number:

    SYM-2500

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    CASE TTT167, 6 PIN

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    0

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    9.8 dB

  • Input Power-Max (CW):

    23 dBm

  • JESD-609 Code:

    e0

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    2500 MHz

  • Operating Frequency-Min:

    1 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC6/8,.37X.5,175

  • RF/Microwave Device Type:

    DOUBLE BALANCED

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN LEAD

  • VSWR-Max:

    3.63

SYM-2500 Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a microstrip layout with 50-ohm impedance. Proper grounding and decoupling are crucial for optimal performance.
  • To achieve the best possible isolation, ensure that the two channels are laid out symmetrically on the PCB, and that the grounds of the two channels are connected only at the SYM-2500's ground pins. Avoid running signals or power lines between the two channels.
  • The SYM-2500 is rated for operation from -40°C to +85°C. However, it's recommended to derate the device's performance at temperatures above 70°C to ensure reliable operation.
  • While the SYM-2500 is designed for 50-ohm systems, it can be used in non-50-ohm systems with some performance degradation. However, the device's impedance mismatch will affect its performance, and additional impedance matching networks may be required.
  • Mini-Circuits recommends using a combination of 10uF and 100nF capacitors in parallel, placed as close as possible to the SYM-2500's power supply pins. This helps to filter out noise and ensure stable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SYM-2500 Overview

Use the download button to access the SYM-2500 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SYM-2, or try a keyword search, such as RF/Microwave Mixers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
