SYM-25DMHW+ - Mini-Circuits

Description: RF Mixer DBL BAL MIX / SURF MT / RoHS Level 13 (LO Power +13 dBm) 40 to 2500 MHz

Download SYM-25DMHW+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

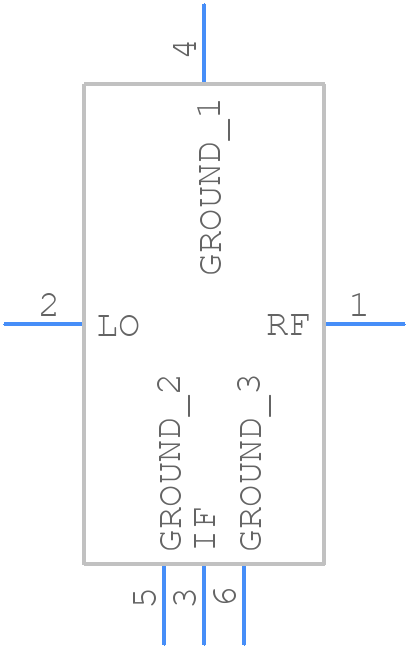

SYM-25DMHW+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
SYM-25DMHW+ - Mini-Circuits PCB footprint - Other - Other - SYM-25DMHW+-2
click to zoom
3D Models
SYM-25DMHW+ - Mini-Circuits - 3D model - Other - SYM-25DMHW+-2
click to zoom

SYM-25DMHW+ Details

  • Manufacturer Part Number:

    SYM-25DMHW+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    9 dB

  • Input Power-Max (CW):

    23 dBm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    2500 MHz

  • Operating Frequency-Min:

    40 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC6/8,.37X.5,175

  • RF/Microwave Device Type:

    DOUBLE BALANCED

  • Surface Mount:

    YES

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

  • VSWR-Max:

    2.94
