Part Image

SYPJ-2-13+ - Mini-Circuits

Description: Core & Wire 180° Hybrid, 10 - 1000 MHz, 50Ω

Download SYPJ-2-13+ Model

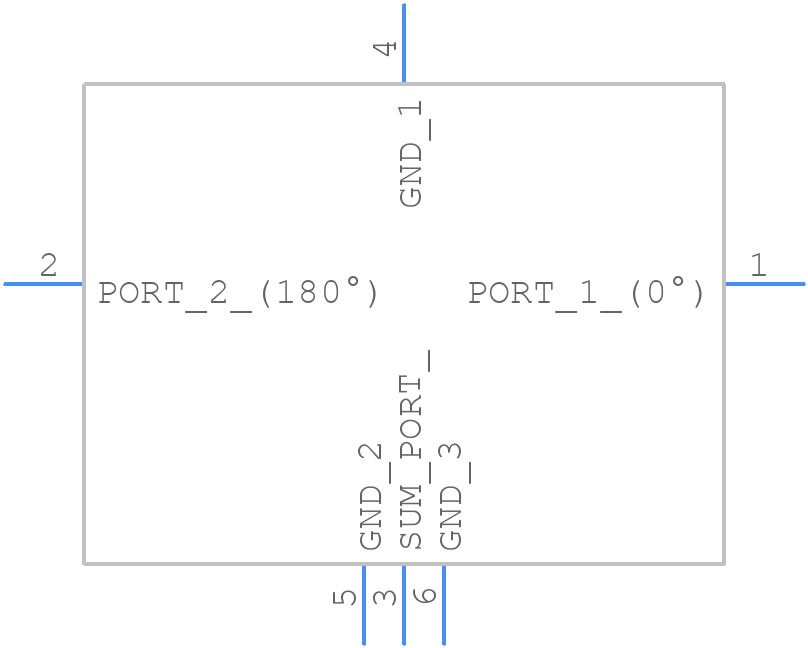

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SYPJ-2-13+ - Mini-Circuits PCB footprint - Other - Other - SYPJ-2-13+-1
click to zoom
3D Models
SYPJ-2-13+ - Mini-Circuits  - 3D model - Other - SYPJ-2-13+-1
click to zoom

SYPJ-2-13+ Details

  • Manufacturer Part Number:

    SYPJ-2-13+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.3

  • Additional Feature:

    TR, 7 INCH: 200

  • Characteristic Impedance:

    50 Ω

  • Construction:

    MODULE

  • Input Power-Max (CW):

    26.99 dBm

  • Insertion Loss-Max:

    2.3 dB

  • Isolation-Min:

    18 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    1000 MHz

  • Operating Frequency-Min:

    10 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    180 DEGREE HYBRID COUPLER

  • Surface Mount:

    YES

  • VSWR-Max:

    1.7

SYPJ-2-13+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The SYPJ-2-13+ has a maximum junction temperature of 150°C. To ensure reliable operation, it's crucial to provide adequate heat sinking and thermal management. This can be achieved by using a heat sink, thermal interface material, and ensuring good airflow around the device.
  • Mini-Circuits recommends following the IPC J-STD-020D standard for soldering and rework. The recommended soldering temperature profile is 260°C for 10-15 seconds, with a peak temperature of 240°C. It's essential to follow these guidelines to prevent damage to the device.
  • Common issues can often be attributed to improper PCB layout, poor soldering, or incorrect component orientation. To troubleshoot, verify the PCB layout and footprint, check for soldering defects, and ensure the device is properly oriented. If issues persist, consult the datasheet and application notes or contact Mini-Circuits' technical support.
  • To prevent damage, store the SYPJ-2-13+ in its original packaging or a similar ESD-protective package. Handle the device by the body, avoiding touching the pins or electrical components. Follow standard ESD precautions, such as using an ESD wrist strap or mat, to prevent static damage.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SYPJ-2-13+ Overview

Use the download button to access the SYPJ-2-13+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SYPJ-, or try a keyword search, such as RF/Microwave Couplers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
