SYPJ-2-5W-52+ - Mini-Circuits

Description: Signal Conditioning Core & Wire 180 Hybrid, 10 - 520 MHz, 50?

Download SYPJ-2-5W-52+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

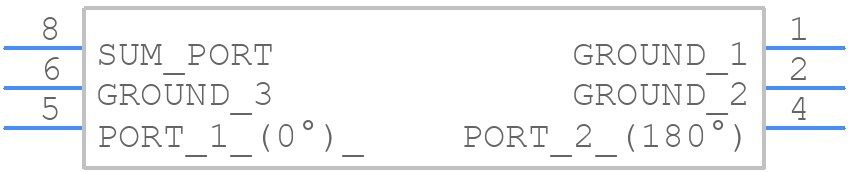

Symbol
SYPJ-2-5W-52+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
SYPJ-2-5W-52+ - Mini-Circuits PCB footprint - Other - Other - AH202-1_2025
click to zoom
3D Models
SYPJ-2-5W-52+ - Mini-Circuits - 3D model - Other - AH202-1_2025
click to zoom

SYPJ-2-5W-52+ Details

  • Manufacturer Part Number:

    SYPJ-2-5W-52+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6

  • Additional Feature:

    HIGH ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    36.99 dBm

  • Insertion Loss-Max:

    1.5 dB

  • Isolation-Min:

    18 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    520 MHz

  • Operating Frequency-Min:

    10 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    SPLITTER AND COMBINER

  • Surface Mount:

    YES

  • VSWR-Max:

    2.3

SYPJ-2-5W-52+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes and evaluation board documentation. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • Impedance matching can be achieved using a combination of series and shunt components. Mini-Circuits provides impedance matching charts and calculators on their website to help with this process. Additionally, simulation tools like ADS or AWR can be used to optimize the matching network.
  • The maximum operating temperature for the SYPJ-2-5W-52+ is 85°C, as specified in the datasheet. However, it's recommended to derate the power handling and operating temperature to ensure reliable long-term operation.
  • Yes, the SYPJ-2-5W-52+ can be used in a push-pull configuration to achieve higher power output and improved linearity. However, it's essential to ensure proper phasing and impedance matching to avoid unwanted oscillations and degradation of performance.
  • The typical lead time and MOQ (Minimum Order Quantity) for the SYPJ-2-5W-52+ vary depending on the region and distributor. It's recommended to check with authorized distributors or Mini-Circuits directly for the most up-to-date information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SYPJ-2-5W-52+ Overview

Use the download button to access the SYPJ-2-5W-52+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SYPJ-, or try a keyword search, such as RF/Microwave Couplers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
