SYPS-2-282-75+ - Mini-Circuits

Description: Signal Conditioning PWR SPLTR CMBD / SM / RoHS

Download SYPS-2-282-75+ Model

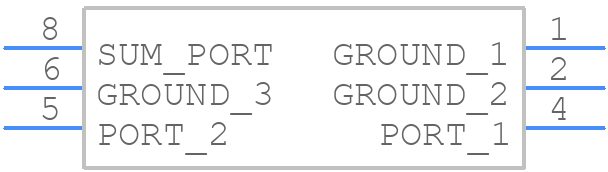

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SYPS-2-282-75+ - Mini-Circuits PCB footprint - Other - Other - AH202
click to zoom
3D Models
SYPS-2-282-75+ - Mini-Circuits  - 3D model - Other - AH202
click to zoom

SYPS-2-282-75+ Details

  • Manufacturer Part Number:

    SYPS-2-282-75+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, CASE AH202-2, 8 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.1

  • Additional Feature:

    ISOLATION-MIN (DB):12

  • Characteristic Impedance:

    75 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    26.99 dBm

  • Insertion Loss-Max:

    2.7 dB

  • Operating Frequency-Max:

    2750 MHz

  • Operating Frequency-Min:

    5 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    COMBINER

  • VSWR-Max:

    1.62

SYPS-2-282-75+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes and evaluation board documentation. It's essential to follow these guidelines to ensure optimal performance, minimize parasitic effects, and prevent thermal issues.
  • The SYPS-2-282-75+ has a maximum junction temperature of 150°C. To ensure reliable operation, it's crucial to provide adequate heat dissipation through a heat sink, thermal vias, or a thermally conductive PCB material. A thermal analysis or simulation can help determine the optimal thermal management strategy.
  • The SYPS-2-282-75+ is designed for 50Ω input and output impedance. To achieve optimal performance, it's essential to match the input and output impedance of the device to the system's impedance using impedance matching networks or transformers.
  • The SYPS-2-282-75+ requires a positive bias voltage (Vcc) of 12V to 15V and a negative bias voltage (Vee) of -12V to -15V. The recommended current levels are typically in the range of 100mA to 200mA. It's essential to follow the recommended biasing scheme and voltage levels to ensure optimal performance and prevent damage to the device.
  • The SYPS-2-282-75+ is a sensitive device and requires proper ESD protection during handling and assembly. It's essential to follow standard ESD handling precautions, such as using an ESD wrist strap, mat, or workstation, and to avoid touching the device's pins or exposed internal components.
