- Part Number SYPS-2-33+
- Manufacturer Mini-Circuits
- Pin Count 6
- Part Category Filter
- Package Category Other
- Footprint Name Other - SYPS-2-33+-3
- Released Date Apr 2, 2022
- Last Modified Date Jun 12, 2024 9:57 AM UTC
- Pinout / Pin List Click Here (Member Only)
SYPS-2-33+ Details
-
Manufacturer Part Number:
SYPS-2-33+
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Manufacturer:
Mini-Circuits
-
YTEOL:
6
-
Additional Feature:
ISOLATION-MIN (DB):14
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Input Power-Max (CW):
26.99 dBm
-
Insertion Loss-Max:
2.1 dB
SYPS-2-33+ Frequently Asked Questions (FAQs)
-
Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
-
Impedance matching can be achieved using a combination of series and shunt resistors, capacitors, and inductors. Mini-Circuits provides a impedance matching calculator tool on their website, which can help you determine the required components for optimal matching.
-
While the datasheet specifies a maximum input power of +33 dBm, the actual power handling capability may be lower depending on the operating frequency, temperature, and other factors. It's recommended to consult with Mini-Circuits' application engineers for specific guidance on power handling.
-
Yes, the SYPS-2-33+ is designed to meet the requirements of high-reliability and space-constrained applications. However, it's essential to consult with Mini-Circuits' application engineers to ensure that the device meets the specific requirements of your application, including screening and qualification requirements.
-
Mini-Circuits provides a troubleshooting guide on their website, which covers common issues and their solutions. Additionally, their application engineers are available to provide support and guidance on troubleshooting and optimizing the performance of the SYPS-2-33+.
Trust Checks
Community Provided
System Verified
Community Approved
SYPS-2-33+ Overview

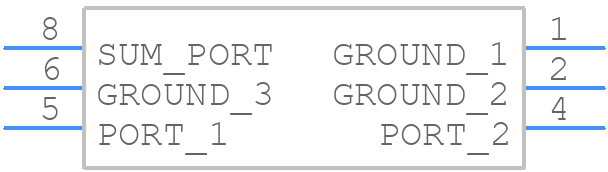

Use the download button to access the SYPS-2-33+ schematic symbol, PCB footprint, and 3D model.
