SYPS-3-12W+ - Mini-Circuits

Description: 3 Ways Core & Wire Power Splitter, 20 - 1200 MHz, 50Ω

Download SYPS-3-12W+ Model

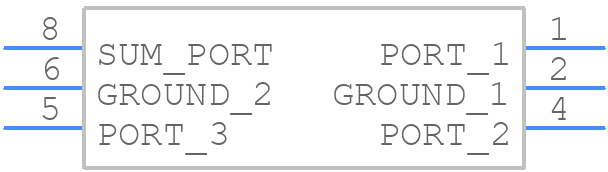

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SYPS-3-12W+ - Mini-Circuits PCB footprint - Other - Other - AH202_2025-1.1
click to zoom
3D Models
SYPS-3-12W+ - Mini-Circuits  - 3D model - Other - AH202_2025-1.1
click to zoom

SYPS-3-12W+ Details

  • Manufacturer Part Number:

    SYPS-3-12W+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, CASE AH202, 8 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.9

  • Additional Feature:

    ISOLATION-MIN (DB):15, USABLE AT 5 TO 1250 MHZ

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    30 dBm

  • Insertion Loss-Max:

    2.9 dB

  • JESD-609 Code:

    e4

  • Operating Frequency-Max:

    1200 MHz

  • Operating Frequency-Min:

    20 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    COMBINER

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

  • VSWR-Max:

    1.54

SYPS-3-12W+ Frequently Asked Questions (FAQs)

  • For optimal performance, it's recommended to follow a 4-layer PCB stackup with a solid ground plane, and to use thermal vias to dissipate heat from the device. A heat sink or thermal pad can also be used to improve thermal management.
  • To ensure proper biasing, follow the recommended biasing circuit in the datasheet, and make sure to use a low-noise, high-PSRR voltage regulator. Additionally, use a bias tee or a resistive divider to set the correct bias voltage and current.
  • While the datasheet specifies an operating temperature range of -40°C to +85°C, it's recommended to derate the power handling by 1 dB for every 10°C above +60°C to ensure safe operation and prevent thermal runaway.
  • Yes, the SYPS-3-12W+ can be used in a push-pull configuration to achieve higher power output. However, this requires careful design and layout to ensure proper impedance matching and to prevent uneven power distribution between the two devices.
  • The recommended input and output matching network depends on the specific application and frequency range. However, a general guideline is to use a low-pass filter or a pi-network for input matching, and a pi-network or a transmission line for output matching. Simulation tools like ADS or AWR can be used to optimize the matching network design.
