SYR838PKC - Silergy

Description: High Efficiency 5.5V, 6A, 2.4MHz I 2 C Programmable, Synchronous Step Down Regulator

Download SYR838PKC Model

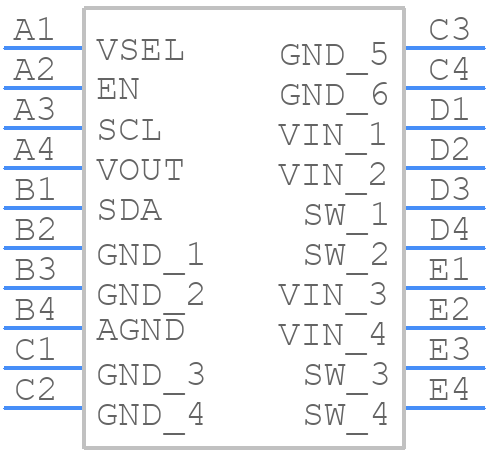

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SYR838PKC - Silergy PCB footprint - BGA - BGA - CSP1.56*1.96-20 -
click to zoom
3D Models
SYR838PKC - Silergy  - 3D model - BGA - CSP1.56*1.96-20 -
click to zoom

SYR838PKC Details

  • Manufacturer Part Number:

    SYR838PKC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    CSP-20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    35 Weeks

  • Manufacturer:

    Silergy Corporation

  • YTEOL:

    2

  • Additional Feature:

    PFM CONTROL ALSO POSSIBLE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.6 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PBGA-B20

  • Length:

    1.96 mm

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    1.5 V

  • Output Voltage-Min:

    0.7125 V

  • Output Voltage-Nom:

    1 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA20,4X5,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    0.66 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2400 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    1.56 mm
