Description:Protection for the Following IEC Standards: IEC 61000−4−2 (ESD) ±30 kV (Contact) IEC 61000−4−5 (Lightning) 35 A (8/20 µs); Flow−Thru Routing Scheme; Low Capacitance: 2 pF Max (I/O to I/O); Wettable Flank Package for optimal Automated Optical Inspection(AOI); UL Flammability Rating of 94 V−0; SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable*; These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
A good PCB layout for optimal thermal performance involves placing thermal vias under the package, using a solid ground plane, and keeping the thermal path as short as possible. It's also recommended to use a thermal pad on the bottom of the package.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable heat sink, and ensure good airflow. Additionally, consider using thermal interface materials and following proper PCB design guidelines.
The recommended soldering conditions for the SZNSP8814LMTWTAG are: peak temperature of 260°C, soldering time of 10-30 seconds, and a soldering iron temperature of 350-370°C. It's also recommended to use a solder with a melting point of 217-220°C.
To handle ESD protection during handling and assembly, it's recommended to use an ESD wrist strap, ESD mat, or ESD chair. Ensure that all equipment and tools are grounded, and handle the device by the body or pins, rather than the leads.
The recommended storage conditions for the SZNSP8814LMTWTAG are: temperature range of -40°C to 125°C, humidity of 60% or less, and protection from direct sunlight. It's also recommended to store the device in its original packaging or a similar ESD-protective package.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SZNSP8814LMTWTAG Overview

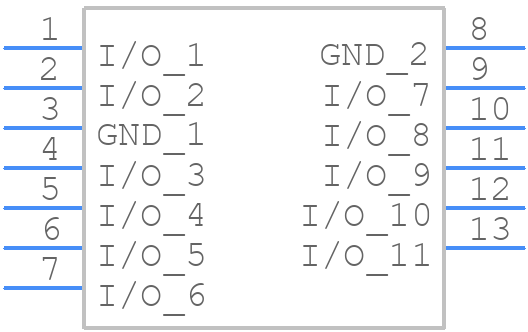

Use the download button to access the SZNSP8814LMTWTAG schematic symbol, PCB footprint, and 3D model.
