Description:EMI Filtering and ESD Protection; Integration of 20 Discretes Components; Compliance with IEC61000-4-2 (Level 4)- 18kV Contact and 30 kV Air; DFN Package, 1.6 x 1.6 mm; Moisture Sensitivity Level 1; ESD Ratings: Machine Model = C and Human Body Model = 3B
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or heat sink, using thermal vias to dissipate heat, and keeping the surrounding area clear of other components to allow for airflow.
To ensure reliable operation in high-temperature environments, follow the recommended operating temperature range, use a heat sink or thermal pad, and consider derating the device's power handling capabilities.
Exceeding the maximum junction temperature (Tj) rating can lead to reduced device lifespan, increased thermal resistance, and potentially catastrophic failure. It's essential to ensure the device operates within the recommended temperature range.
The SZNUF4403MNT1G is a commercial-grade device, and its use in high-reliability or safety-critical applications may require additional qualification, testing, and validation. Consult with onsemi or a qualified reliability engineer to determine suitability.
The SZNUF4403MNT1G has built-in ESD protection, but it's still essential to follow proper ESD handling and storage procedures to prevent damage. Use an ESD wrist strap, mat, or workstation, and handle the device by the body or pins, not the leads.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SZNUF4403MNT1G Overview

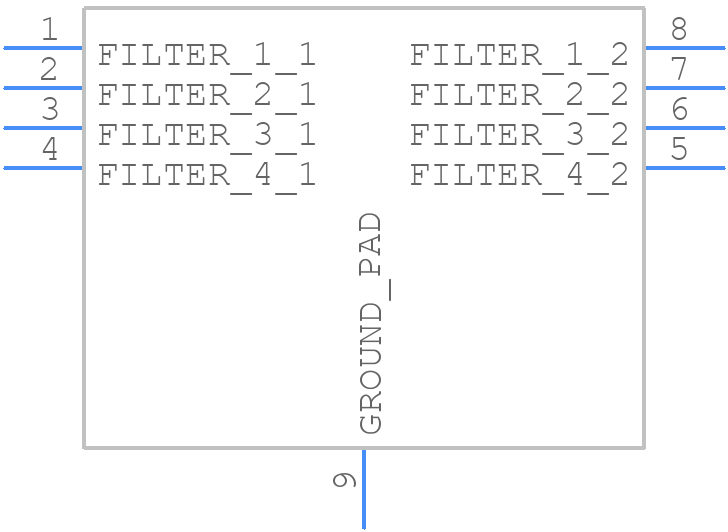

Use the download button to access the SZNUF4403MNT1G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SZNUF,
or try a keyword search, such as Data Line Filters
