Si82900AB-AU - Skyworks

Description: The new Si829x Isolated Safety Gate Drivers provide a complete solution for power switch driving applications, including Silicon Carbide FETs and IGBTs. Devices in this family feature the new ProVCD™ current-mode gate drive architecture and are available in single-channel configurations suitable for high-side or low-side operation. Extensive configurability enables cycle-by-cycle programmability with digital control. Comprehensive functional safety support is provided through power-up checks, latent fault d

Download Si82900AB-AU Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this Si82900AB-AU model

Email notifications will be applied after download.

Send part feedback

Symbol

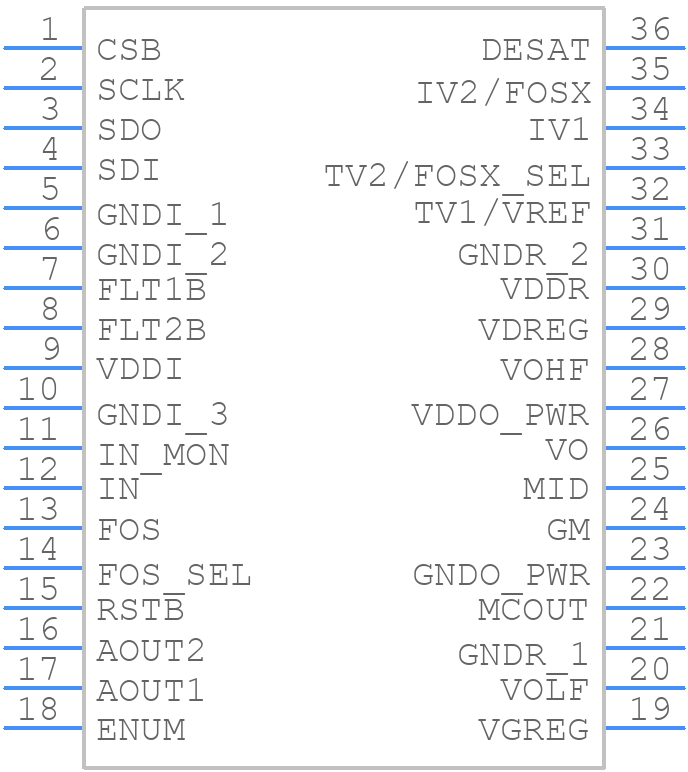

Si82900AB-AU - Skyworks - PCB symbol

PCB Footprints

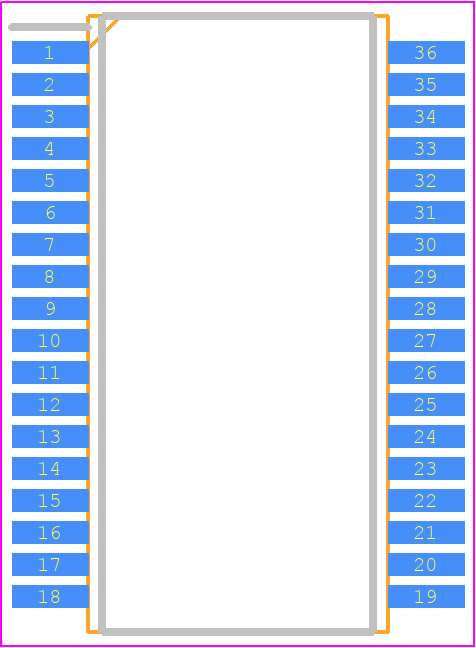

Si82900AB-AU - Skyworks PCB footprint - Small Outline Packages - Small Outline Packages - 36 Lead SSOP Package Outline Drawing

3D Models

Si82900AB-AU - Skyworks - 3D model - Small Outline Packages - 36 Lead SSOP Package Outline Drawing

Datasheet Download Datasheet
Stock & Prices Price & Stock for Si82900AB-AU
Part Number Si82900AB-AU
Manufacturer Skyworks
Pin Count 36
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - 36 Lead SSOP Package Outline Drawing
Released Date Jul 3, 2026
Last Modified Date Jul 6, 2026 11:53 AM UTC
Pinout / Pin List Click Here (Member Only)

Si82900AB-AU Details

Manufacturer Part Number:
Si82900AB-AU
Manufacturer:
Skyworks Solutions Inc

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

Si82900AB-AU Overview

Use the download button to access the Si82900AB-AU schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like Si829, or try a keyword search, such as MOSFET Drivers
