SiT5156AECFD-33VT-25.000000 footprint, schematic symbol and 3D model by SiTime

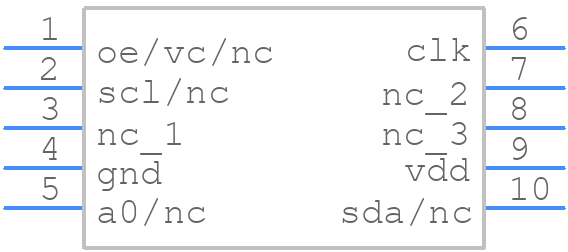

Symbol

PCB Footprints

3D Models

SiT5156AECFD-33VT-25.000000 Details

SiTime recommends following the PCB layout guidelines provided in the application note AN10003, which includes recommendations for pad layout, trace routing, and component placement to minimize noise and ensure optimal performance.
The SIT5156AECFD-33VT-25.000000 is a programmable oscillator, and the frequency can be configured using the SiTime Programmer software or by using the One-Time Programmable (OTP) feature. Refer to the datasheet and programming guide for more information.
The SIT5156AECFD-33VT-25.000000 has an operating temperature range of -40°C to +85°C, but it can be extended to -55°C to +125°C with derating. Refer to the datasheet for more information on temperature derating.
SiTime recommends using a low-noise power supply and decoupling the oscillator with a 10nF to 100nF capacitor between the VDD and GND pins. Additionally, ensure that the power supply noise is within the specified limits to prevent oscillator jitter and instability.
The typical start-up time for the SIT5156AECFD-33VT-25.000000 is around 2ms to 5ms, but this can vary depending on the specific application and operating conditions. Refer to the datasheet for more information on start-up time and stability.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the SiT5156AECFD-33VT-25.000000 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SiT51, or try a keyword search, such as TCVCXO
