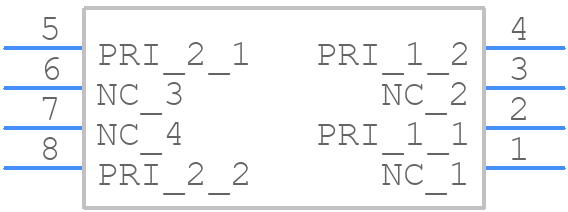

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for T-1111-150
- Part Number T-1111-150
- Manufacturer FDK
- Pin Count 8
- Part Category Transformer
- Package Category Other
- Footprint Name Other - T-1111-150-3
- Released Date Feb 8, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
T-1111-150 Details
-
Manufacturer Part Number:
T-1111-150
-
Manufacturer:
FDK America
Trust Checks
Community Provided
System Verified
Community Approved
T-1111-150 Overview
Use the download button to access the T-1111-150 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like T-111,
or try a keyword search, such as Inverter Transformers
