T-S2ALN4 - Well Buying

T-S2ALN4 Details

• Manufacturer Part Number:

  T-S2ALN4

• Part Life Cycle Code:

  Contact Manufacturer

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.70.00

• Manufacturer:

  Well Buying Industrial Co Ltd

• Actuator Material:

  POLYOXYMETHYLENE

• Actuator Travel:

  4.4958 mm

• Actuator Type:

  PUSHBUTTON

• Body Breadth:

  6.604 mm

• Body Height:

  24.511 mm

• Body Length or Diameter:

  8.9916 mm

• Contact (AC) Max Rating R Load:

  0.2A@125VAC

• Contact Current(AC)-Max:

  0.2 A

• Contact Current(DC)-Max:

  1 A

• Contact (DC) Max Rating R Load:

  1A@25VDC

• Contact Resistance:

  0.04 mΩ

• Contact Timing:

  BREAK-BEFORE-MAKE

• Contact Voltage(AC)-Max:

  125 V

• Contact Voltage(DC)-Max:

  25 V

• Dielectric Withstand Volts:

  500VAC V

• Electrical Life:

  10000 Cycle(s)

• Insulation Resistance:

  100000000 Ω

• Mounting Feature:

  THROUGH HOLE-RIGHT ANGLE

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -20 °C

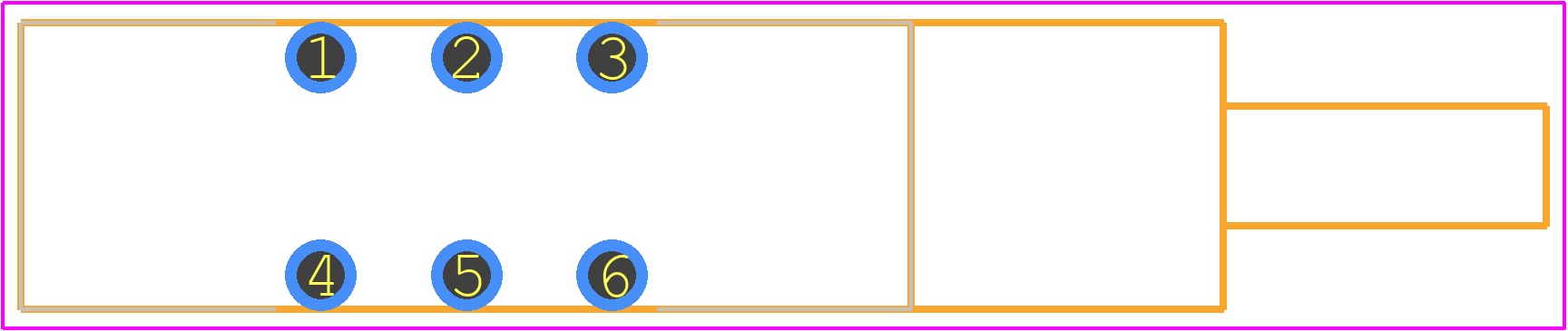

• PCB Hole Count:

  6

• Surface Mount:

  NO

• Switch Action:

  MOMENTARY

• Switch Function:

  DPDT

• Terminal Material:

  BRASS

• Termination Type:

  SOLDER
