T1-1T-X65+ - Mini-Circuits

Description: Audio Transformers / Signal Transformers 1:1 CORE & WIRE Transformer, 0.08 - 200 MHz, 50?

Download T1-1T-X65+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

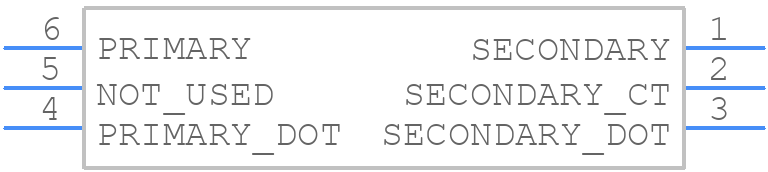

Symbol
T1-1T-X65+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
T1-1T-X65+ - Mini-Circuits PCB footprint - Other - Other - T1-1T-X65+-1
click to zoom
3D Models
T1-1T-X65+ - Mini-Circuits - 3D model - Other - T1-1T-X65+-1
click to zoom

T1-1T-X65+ Details

  • Manufacturer Part Number:

    T1-1T-X65+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    5.5

  • Additional Feature:

    OHMS RATIO IS 1

  • Application:

    MATCHING

  • Cut-off Frequency-Max:

    200 MHz

  • Cut-off Frequency-Min:

    0.08 MHz

  • DC Unbalance Current-Max:

    30 mA

  • Height:

    5.84 mm

  • Insertion Loss:

    3 dB

  • JESD-609 Code:

    e3

  • Length:

    7.62 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    200000 kHz

  • Operating Frequency-Min:

    80 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Power Rating:

    0.25 W

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN OVER NICKEL

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    6.86 mm

T1-1T-X65+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • Impedance matching is critical for optimal performance. Mini-Circuits recommends using a pi-network or a T-network topology for impedance matching. You can use their online impedance matching tool or consult with their application engineers for guidance.
  • While the datasheet doesn't specify a maximum power handling, Mini-Circuits recommends derating the power handling based on the operating frequency and temperature. As a general rule, it's recommended to derate the power handling by 1 dB for every 10°C increase in temperature above 25°C.
  • Yes, the T1-1T-X65+ can be used in switching applications, but it's essential to ensure that the switching frequency is within the device's bandwidth. Additionally, you should consider the device's settling time and ringing characteristics to avoid unwanted oscillations.
  • To minimize EMI, ensure that the device is properly shielded, and the PCB layout is designed to minimize radiation. Use a ground plane, and consider adding EMI filters or absorbers to reduce radiation. Additionally, follow good PCB design practices, such as keeping signal traces short and away from the edge of the board.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

T1-1T-X65+ Overview

Use the download button to access the T1-1T-X65+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like T1-1T, or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
