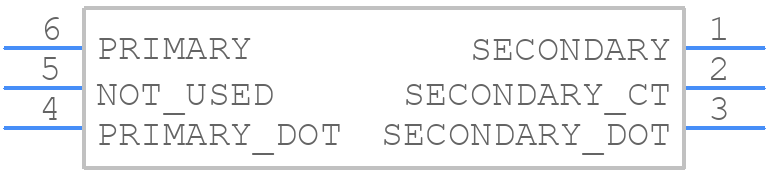

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for T1-6T-KK81
- Part Number T1-6T-KK81
- Manufacturer Mini-Circuits
- Pin Count 6
- Part Category Transformer
- Package Category Other
- Footprint Name Other - T1-6T-KK81 (KK81)
- Released Date Apr 22, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
T1-6T-KK81 Details
-
Manufacturer Part Number:
T1-6T-KK81
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8504.40.85.00
-
Manufacturer:
Mini-Circuits
-
YTEOL:
0
-
Additional Feature:
OHMS RATIO IS 1
-
Application:
MATCHING
-
Cut-off Frequency-Max:
300 MHz
-
Cut-off Frequency-Min:
0.015 MHz
T1-6T-KK81 Frequently Asked Questions (FAQs)
-
Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
-
Impedance matching can be achieved using a combination of series and shunt resistors, capacitors, and inductors. Mini-Circuits provides a impedance matching calculator on their website, which can help you determine the required components and their values.
-
The maximum power handling of the T1-6T-KK81 is not explicitly stated in the datasheet. However, according to Mini-Circuits' application notes, the device can handle up to 1W of power. It's essential to derate the power handling based on the operating frequency and temperature to ensure reliable operation.
-
Yes, the T1-6T-KK81 is designed to meet the requirements of high-reliability and space-constrained applications. It's built with a ruggedized package and has a low profile, making it suitable for use in aerospace, defense, and other demanding environments.
-
Common issues with the T1-6T-KK81 can often be attributed to improper PCB layout, incorrect impedance matching, or component damage. Mini-Circuits provides troubleshooting guides and application notes on their website, which can help you identify and resolve these issues.
Trust Checks
Expert Contribution
System Verified
Community Approved
T1-6T-KK81 Overview
Use the download button to access the T1-6T-KK81 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like T1-6T,
or try a keyword search, such as RF Transformers
About Mini-Circuits
Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
