The recommended operating temperature range for the T100V-010.0M is -40°C to +85°C.
To ensure reliable startup, make sure the power supply voltage is within the recommended range (1.8V to 3.3V), and the oscillator is properly decoupled with a 0.01uF to 0.1uF capacitor between VDD and GND.
The typical current consumption of the T100V-010.0M is around 10mA to 15mA, depending on the output frequency and load capacitance.
Yes, the T100V-010.0M has a high immunity to electromagnetic interference (EMI) and can operate reliably in noisy environments. However, it's still recommended to follow proper PCB design and layout practices to minimize noise coupling.
The output frequency of the T100V-010.0M is fixed and cannot be adjusted. If you need a different frequency, you may need to consider a different oscillator model or use an external frequency divider/multiplier circuit.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
T100V-010.0M Overview

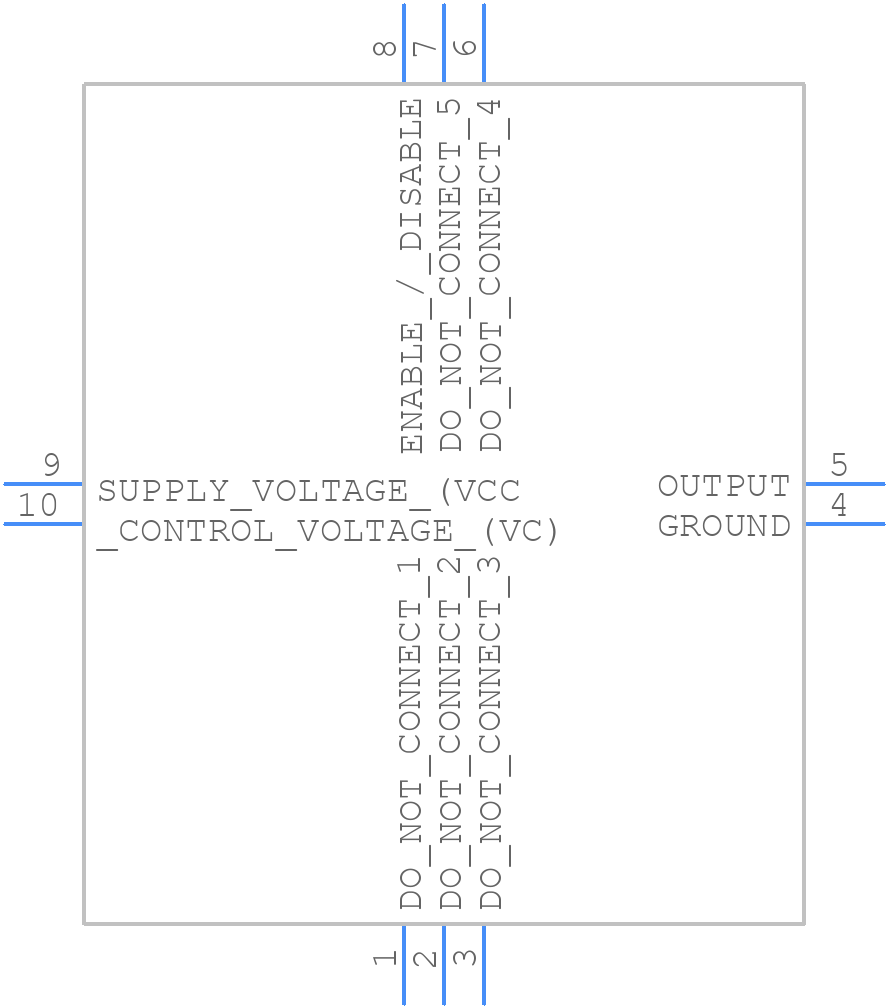

Use the download button to access the T100V-010.0M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like T100V,
or try a keyword search, such as TCVCXO
