Part Image

T101MH9AVBE - LITTELFUSE

Description: Switch Toggle ON None ON SPDT Round Lever PC Pins 20VAC 20VDC 0.4VA PC Mount with Bracket Bulk

Download T101MH9AVBE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

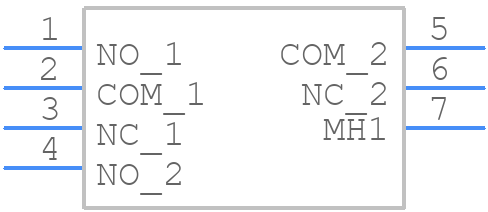

T101MH9AVBE - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints

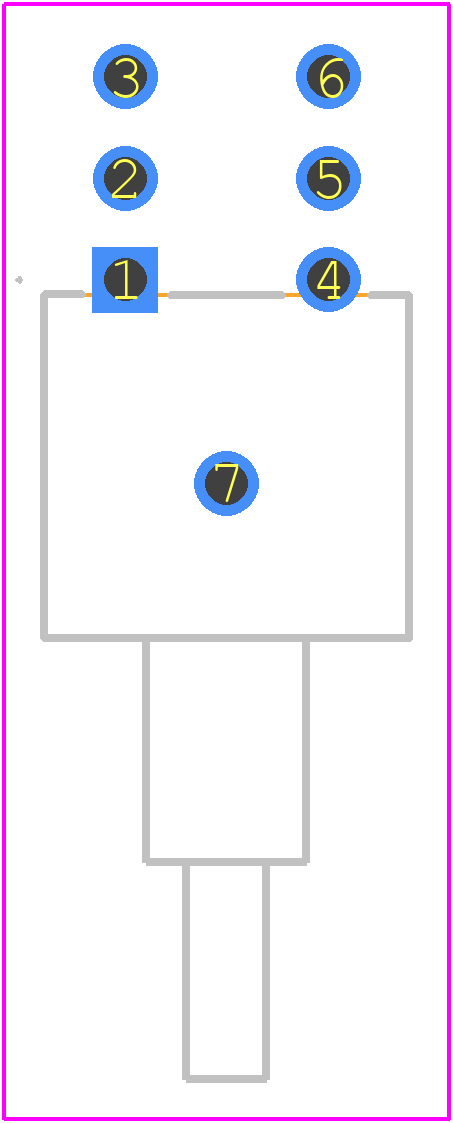

T101MH9AVBE - LITTELFUSE PCB footprint - Other - Other - T101MH9AVBE Vertical Actuation SPDT-2025
click to zoom
3D Models
T101MH9AVBE - LITTELFUSE - 3D model - Other - T101MH9AVBE Vertical Actuation SPDT-2025
click to zoom

T101MH9AVBE Details

  • Manufacturer Part Number:

    T101MH9AVBE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    9

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

T101MH9AVBE Overview

Use the download button to access the T101MH9AVBE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like T101M, or try a keyword search, such as Toggle Switches
