T2-1T-KK81 - Mini-Circuits

Description: 1:2 CORE & WIRE Transformer, 0.07 - 200 MHz, 50Ω

Download T2-1T-KK81 Model

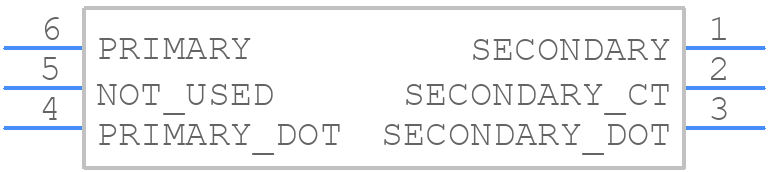

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
T2-1T-KK81 - Mini-Circuits PCB footprint - Other - Other - T2-1T-KK81-1
click to zoom

T2-1T-KK81 Details

  • Manufacturer Part Number:

    T2-1T-KK81

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    0

  • Additional Feature:

    OHMS RATIO IS: 2

  • Application:

    SIGNAL

  • Cut-off Frequency-Max:

    200 MHz

  • Cut-off Frequency-Min:

    0.07 MHz

  • DC Unbalance Current-Max:

    30 mA

  • Height:

    5.84 mm

  • Insertion Loss:

    3 dB

  • JESD-609 Code:

    e0

  • Length:

    7.62 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    200000 kHz

  • Operating Frequency-Min:

    70 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Power Rating:

    0.25 W

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    6.86 mm
