The recommended termination impedance is 1 kΩ to ensure proper signal integrity and minimize reflections.
Yes, the T200F-040.0M is rated for operation from -40°C to +85°C, making it suitable for use in harsh environments with high temperatures.
To ensure frequency stability, it's essential to follow proper PCB layout guidelines, use a stable power supply, and minimize environmental stressors such as temperature and humidity changes.
The typical power consumption of the T200F-040.0M is around 20-30 mA, depending on the specific application and operating conditions.
Yes, the T200F-040.0M is designed to provide low jitter performance, making it suitable for applications that require high-frequency stability and low phase noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
T200F-040.0M Overview

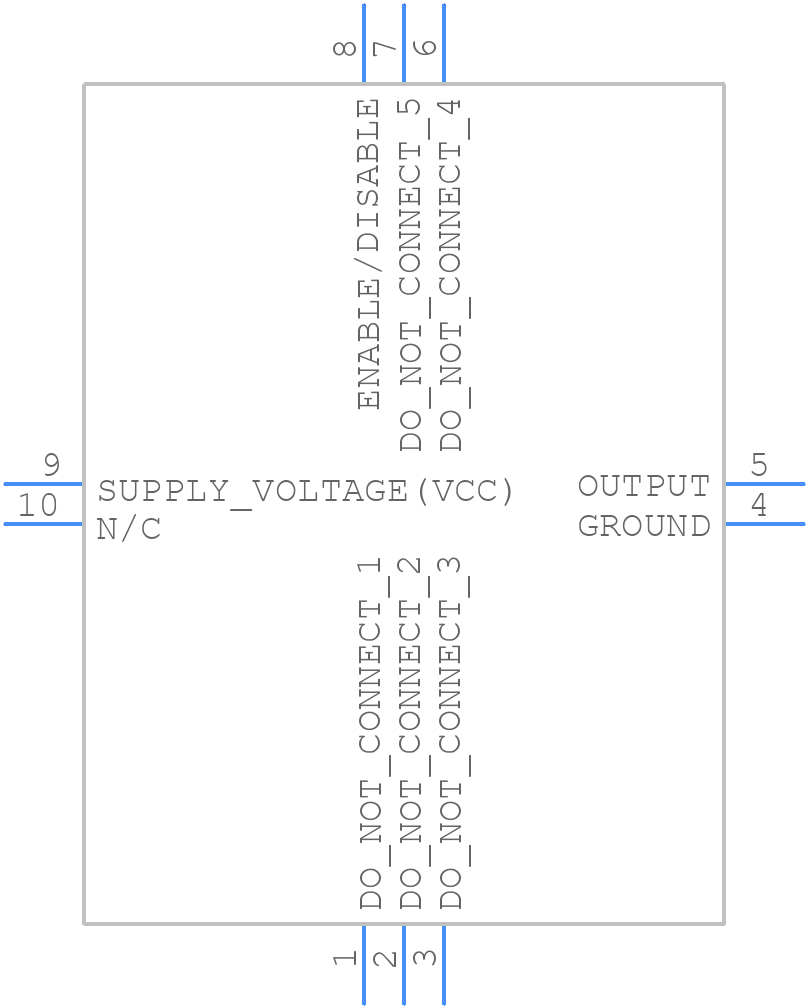

Use the download button to access the T200F-040.0M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like T200F,
or try a keyword search, such as TCXO
