T201SH9ABE - LITTELFUSE

T201SH9ABE Details

• Manufacturer Part Number:

  T201SH9ABE

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Vietnam

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.65

• Manufacturer:

  Littelfuse Inc

• YTEOL:

  7

• Actuator Angle:

  25 deg

• Actuator Finish:

  CHROME

• Actuator Length:

  0.37 inch

• Actuator Material:

  BRASS

• Actuator Type:

  HIGH TYPE

• Body Breadth:

  8.13 mm

• Body Height:

  9.14 mm

• Body Length or Diameter:

  9.09 mm

• Bushing Diameter:

  0.249 inch

• Bushing Length:

  0.22 inch

• Bushing Type:

  1/4-48

• Center Contact Material:

  COPPER ALLOY

• Center Contact Plating:

  GOLD OVER NICKEL

• Contact (AC) Max Power Rating R Load:

  0.4VA@20VAC

• Contact (AC) Max Rating R Load:

  0.02A@20VAC

• Contact Current(AC)-Max:

  0.02 A

• Contact Current(DC)-Max:

  0.02 A

• Contact (DC) Max Rating R Load:

  0.02A@20VDC

• Contact Function:

  ON-ON

• Contact Resistance:

  0.1 mΩ

• Contact Voltage(AC)-Max:

  20 V

• Contact Voltage(DC)-Max:

  20 V

• Dielectric Withstand Volts:

  1000VAC V

• Electrical Life:

  60000 Cycle(s)

• End Contact Material:

  COPPER ALLOY

• End Contact Plating:

  GOLD OVER NICKEL

• Housing Material:

  STAINLESS STEEL

• Insulation Resistance:

  1000000000 Ω

• JESD-609 Code:

  e4

• Mounting Feature:

  THROUGH HOLE-RIGHT ANGLE

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -30 °C

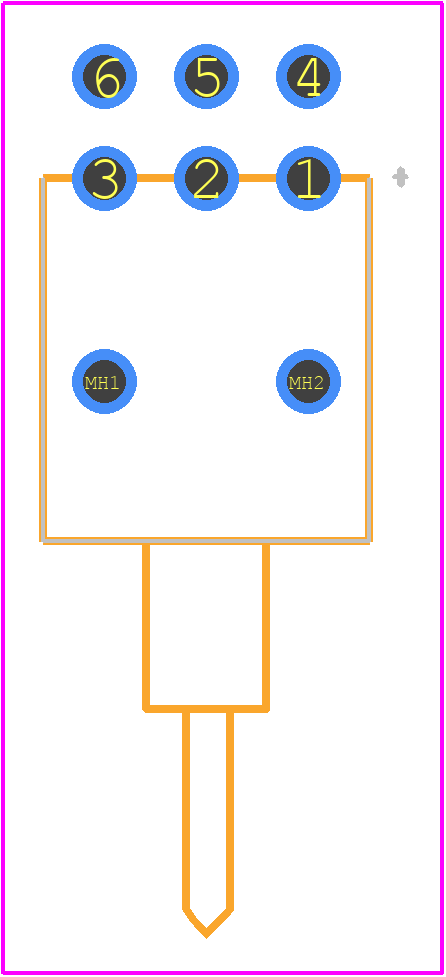

• PCB Hole Count:

  6

• Sealing:

  EPOXY TERMINAL SEALED

• Solderability:

  MIL-STD

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  DPDT

• Switch Type:

  TOGGLE SWITCH

• Terminal Finish:

  GOLD OVER NICKEL

• Terminal Length:

  0.128 inch

• Terminal Material:

  COPPER ALLOY

• Termination Type:

  SOLDER
