T2080NXE8MQB - NXP

Description: PowerPC e6500 Microprocessor IC QorIQ T2 4 Core, 64-Bit 1.2GHz 896-FCPBGA (25x25)

Download T2080NXE8MQB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
T2080NXE8MQB - NXP - PCB symbol
click to zoom
PCB Footprints

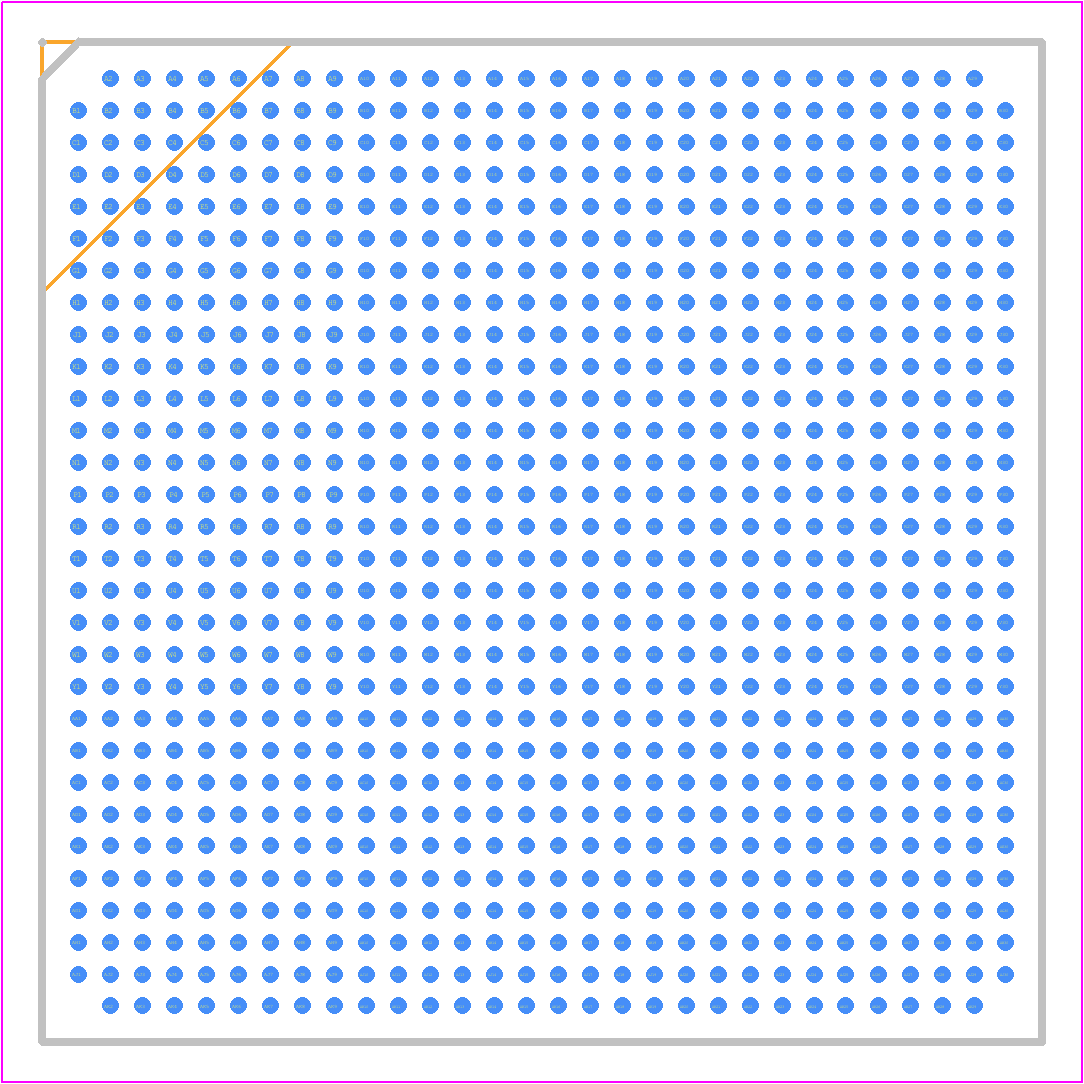

T2080NXE8MQB - NXP PCB footprint - BGA - BGA - SOT1657-1
click to zoom
3D Models
T2080NXE8MQB - NXP - 3D model - BGA - SOT1657-1
click to zoom

T2080NXE8MQB Details

  • Manufacturer Part Number:

    T2080NXE8MQB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FCBGA-896

  • ECCN Code:

    5A002.A.1

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    9

  • JESD-30 Code:

    S-PBGA-B896

  • Length:

    25 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    896

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA896,30X30,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    250

  • Seated Height-Max:

    2.61 mm

  • Supply Voltage-Max:

    1.055 V

  • Supply Voltage-Min:

    0.995 V

  • Supply Voltage-Nom:

    1.025 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    25 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

T2080NXE8MQB Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the T2080NXE8MQB is -40°C to 125°C.
  • The DDR memory interface on the T2080NXE8MQB can be configured using the DDR controller registers. Refer to the T2080NXE8MQB reference manual for detailed information on configuring the DDR interface.
  • The maximum frequency of the e500mc core on the T2080NXE8MQB is 1.8 GHz.
  • Secure boot on the T2080NXE8MQB can be implemented using the Secure Boot mechanism, which involves generating a secure boot image and storing it in the boot flash. Refer to the T2080NXE8MQB reference manual for detailed information on implementing secure boot.
  • The power consumption of the T2080NXE8MQB varies depending on the operating frequency and voltage. Refer to the T2080NXE8MQB datasheet for detailed power consumption information.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

T2080NXE8MQB Overview

Use the download button to access the T2080NXE8MQB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like T2080, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
