T2080NXN8PTB - NXP

Description: PowerPC e6500 Microprocessor IC QorIQ T2 4 Core, 64-Bit 1.533GHz 896-FCPBGA (25x25)

Download T2080NXN8PTB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
T2080NXN8PTB - NXP - PCB symbol
click to zoom
PCB Footprints

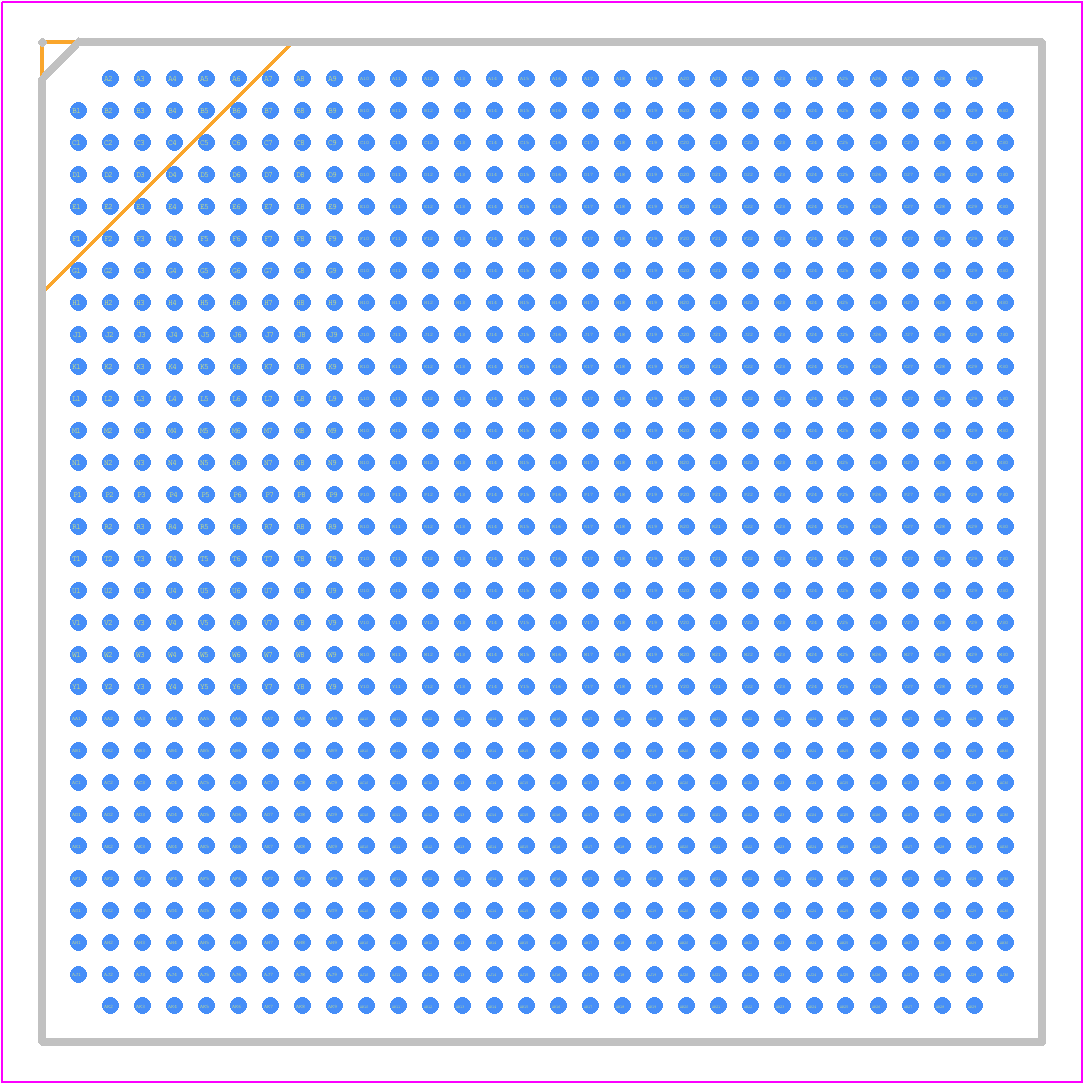

T2080NXN8PTB - NXP PCB footprint - BGA - BGA - SOT1657-1
click to zoom
3D Models
T2080NXN8PTB - NXP - 3D model - BGA - SOT1657-1
click to zoom

T2080NXN8PTB Details

  • Manufacturer Part Number:

    T2080NXN8PTB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FCBGA-896

  • ECCN Code:

    3A991.A.1

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    9

  • JESD-30 Code:

    S-PBGA-B896

  • Length:

    25 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    896

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA896,30X30,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    250

  • Seated Height-Max:

    2.61 mm

  • Supply Voltage-Max:

    1.055 V

  • Supply Voltage-Min:

    0.995 V

  • Supply Voltage-Nom:

    1.025 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    25 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

T2080NXN8PTB Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the T2080NXN8PTB is -40°C to 125°C.
  • The SerDes lanes on the T2080NXN8PTB can be configured using the SerDes Lane Configuration Register (SLCR) and the SerDes Lane Control Register (SLCR). Refer to the T2080NXN8PTB Reference Manual for detailed configuration information.
  • The maximum bandwidth of the PCIe interface on the T2080NXN8PTB is 8 GT/s (gigatransfers per second) per lane, with a maximum of 8 lanes.
  • Secure boot on the T2080NXN8PTB can be implemented using the Secure Boot mechanism, which involves generating a secure boot image using the CodeWarrior development tools and storing it in the device's flash memory. Refer to the T2080NXN8PTB Reference Manual for detailed implementation information.
  • The power consumption of the T2080NXN8PTB varies depending on the operating frequency, voltage, and other factors. Refer to the T2080NXN8PTB datasheet for detailed power consumption information.
