T2080NXN8TTB - NXP

Description: PowerPC e6500 Microprocessor IC QorIQ T2 4 Core, 64-Bit 1.8GHz 896-FCPBGA (25x25)

Download T2080NXN8TTB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
T2080NXN8TTB - NXP - PCB symbol
click to zoom
PCB Footprints

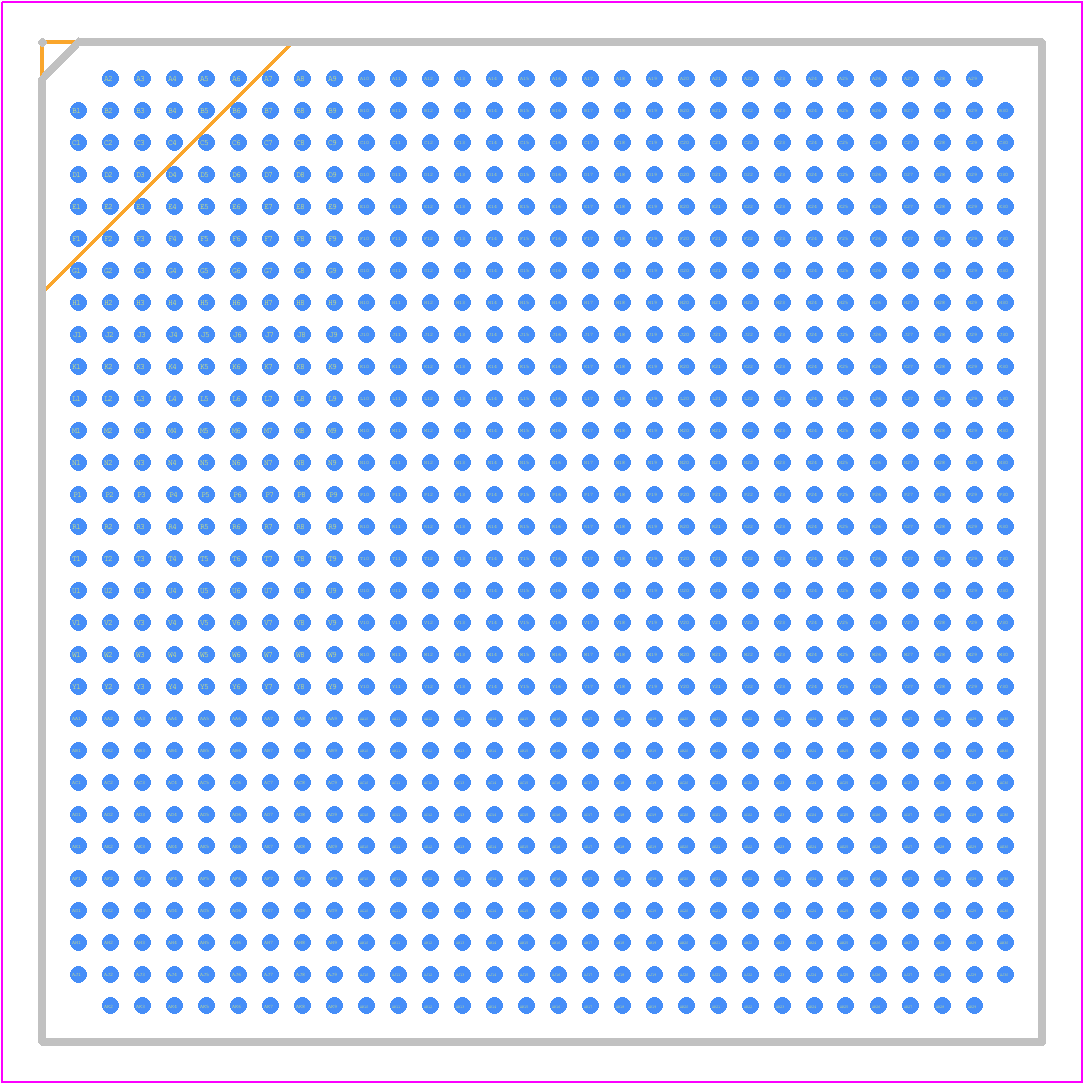

T2080NXN8TTB - NXP PCB footprint - BGA - BGA - SOT1657-1
click to zoom
3D Models
T2080NXN8TTB - NXP - 3D model - BGA - SOT1657-1
click to zoom

T2080NXN8TTB Details

  • Manufacturer Part Number:

    T2080NXN8TTB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FCBGA-896

  • ECCN Code:

    3A991.A.1

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    9

  • JESD-30 Code:

    S-PBGA-B896

  • Length:

    25 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    896

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA896,30X30,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    250

  • Seated Height-Max:

    2.61 mm

  • Supply Voltage-Max:

    1.055 V

  • Supply Voltage-Min:

    0.995 V

  • Supply Voltage-Nom:

    1.025 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    25 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

T2080NXN8TTB Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the T2080NXN8TTB is -40°C to 125°C, but it can be extended to -55°C to 125°C with some limitations. It's essential to consult the datasheet and application notes for specific temperature-related requirements.
  • To optimize power consumption on the T2080NXN8TTB, you can use various techniques such as clock gating, voltage scaling, and dynamic voltage and frequency scaling (DVFS). Additionally, you can use the processor's power management features, such as the Power Management Unit (PMU) and the Clocking and Reset Generation (CRG) module.
  • The maximum frequency of the T2080NXN8TTB is 1.8 GHz, but it can be configured to operate at lower frequencies to reduce power consumption or to meet specific application requirements.
  • To ensure reliable booting of the T2080NXN8TTB, you should follow the recommended boot sequence and configuration, as described in the datasheet and application notes. Additionally, you should use a reliable boot device, such as a serial flash or a boot ROM, and ensure that the boot code is correctly configured and validated.
  • The T2080NXN8TTB's DDR memory interface has some limitations, such as a maximum memory bandwidth of 25.6 GB/s and a maximum memory capacity of 16 GB. Additionally, the DDR interface is limited to DDR3L and DDR4 memory types, and it does not support other memory types, such as DDR5 or LPDDR4.
