The thermal resistance (Rth) of the T31SN12008NNFA is typically around 0.5°C/W (junction-to-case) and 1.5°C/W (junction-to-ambient) at a maximum junction temperature of 150°C.
Yes, the T31SN12008NNFA is designed for high-reliability applications, with a MTBF (Mean Time Between Failures) of over 10 million hours at 40°C, making it suitable for use in critical systems.
To ensure proper cooling, it's recommended to use a heat sink with a thermal interface material (TIM) and ensure good airflow around the device. The heat sink should be designed to handle the maximum power dissipation of the device.
The recommended PCB layout for the T31SN12008NNFA involves using a multi-layer board with a solid ground plane, placing the device near the edge of the board, and using vias to connect the thermal pad to the heat sink.
The T31SN12008NNFA is rated for a maximum voltage of 1200V, making it suitable for high-voltage applications such as power supplies, motor drives, and renewable energy systems.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
T31SN12008NNFA Overview

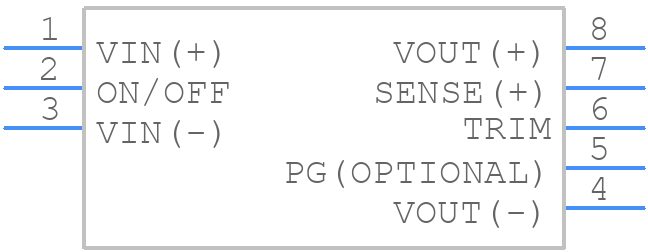

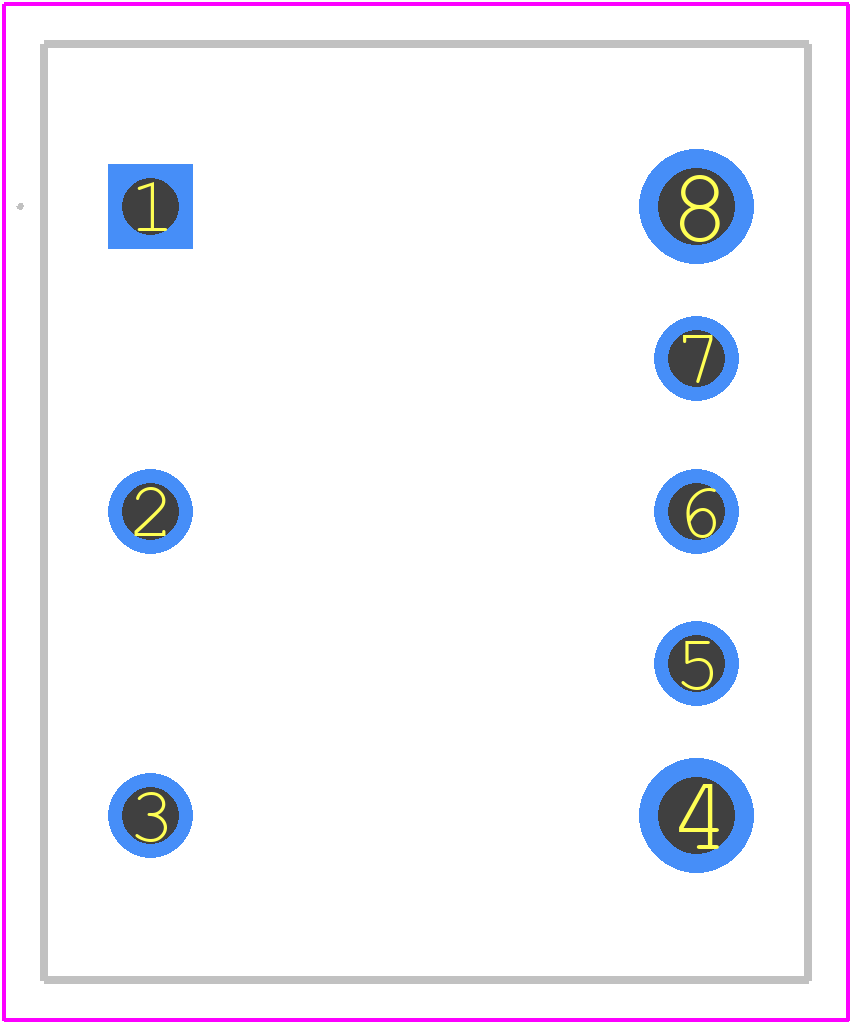

Use the download button to access the T31SN12008NNFA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like T31SN,
or try a keyword search, such as Power Supply Modules
