The thermal resistance (Rth) of the T31SN24005NMFA is typically around 1.5°C/W (junction-to-case) and 3.5°C/W (junction-to-ambient) at a maximum operating temperature of 150°C.
Yes, the T31SN24005NMFA is designed for high-reliability applications, with a MTBF (Mean Time Between Failures) of over 10 million hours at 40°C, making it suitable for critical systems.
To ensure the T31SN24005NMFA operates within its SOA, follow the recommended operating conditions, such as voltage, current, and temperature limits, and use proper thermal management, like heat sinks or cooling systems.
For optimal performance and thermal management, follow the recommended PCB layout guidelines provided by Delta Electronics Inc, including proper copper tracing, thermal vias, and component placement.
Yes, the T31SN24005NMFA is designed for high-frequency switching applications, with a switching frequency up to 100 kHz, making it suitable for power supplies, motor drives, and other high-frequency systems.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
T31SN24005NMFA Overview

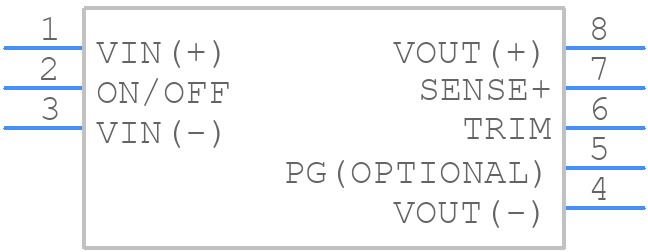

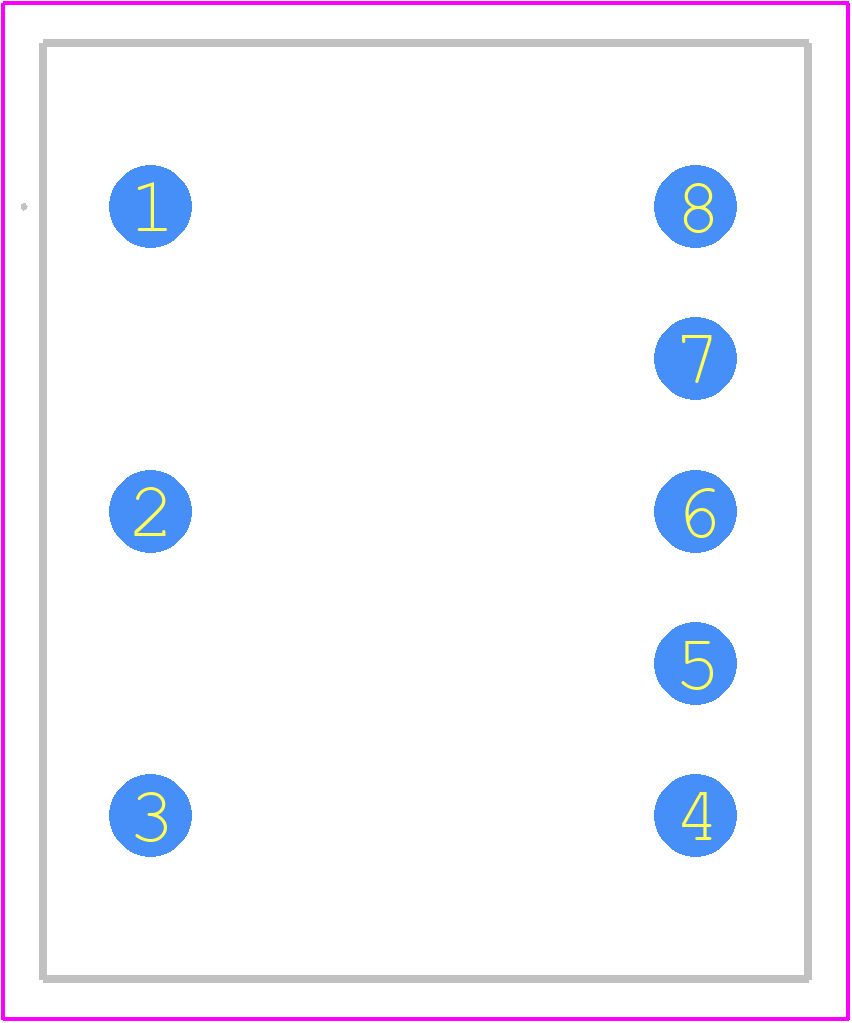

Use the download button to access the T31SN24005NMFA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like T31SN,
or try a keyword search, such as Power Supply Modules
