T3403218 - Amphenol

Description: T 3403 218 - M16 PCB flange mounting right angled Female receptacle with ring nut. 6 contacts, gold plated Contacts included.

Download T3403218 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
T3403218 - Amphenol - PCB symbol
click to zoom
PCB Footprints

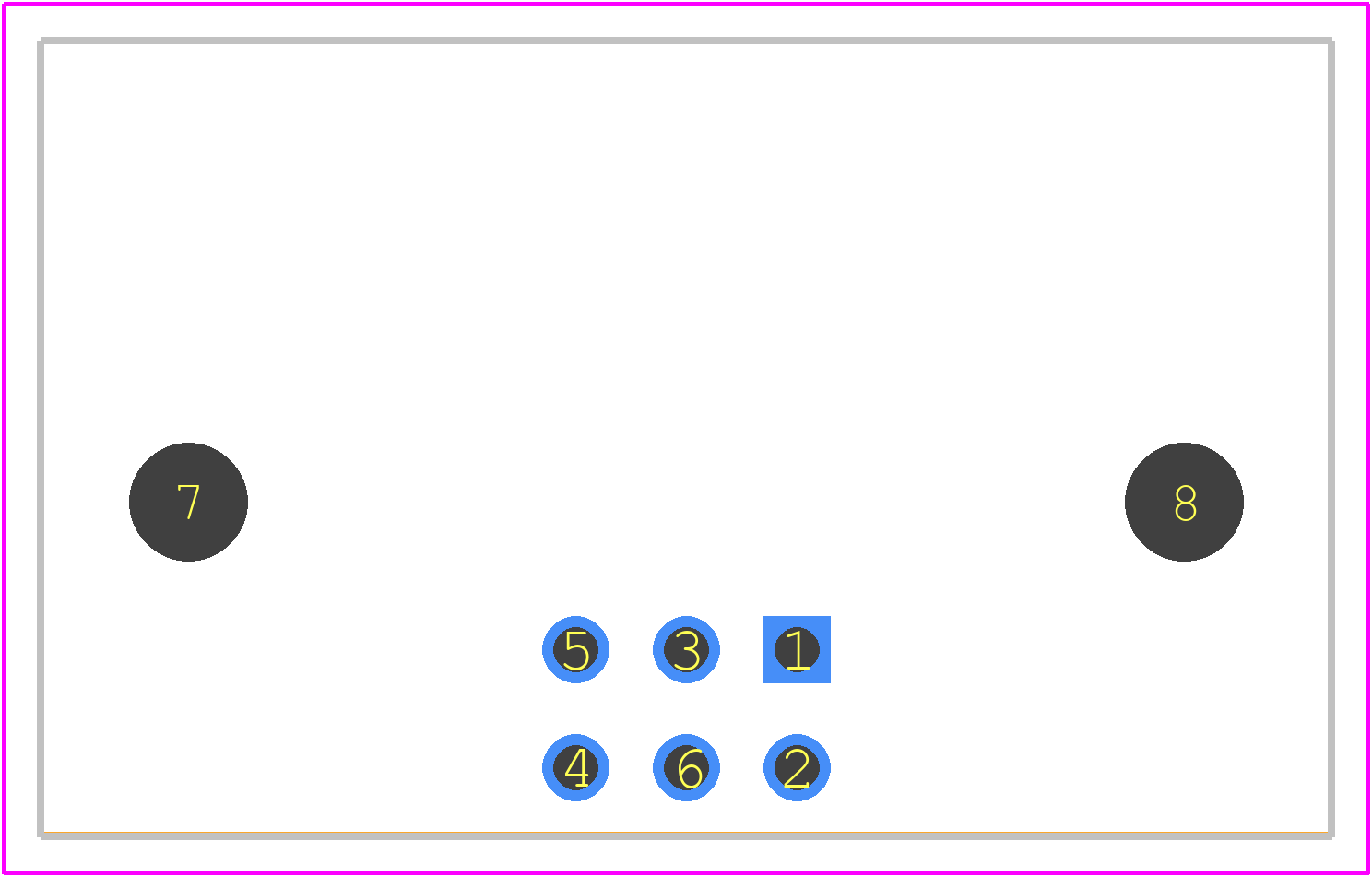

T3403218 - Amphenol PCB footprint - Other - Other - T3403218
click to zoom
3D Models
T3403218 - Amphenol - 3D model - Other - T3403218
click to zoom

T3403218 Details

  • Manufacturer Part Number:

    T3403218

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    7.76

  • Additional Feature:

    EMI SHIELDED

  • Backshell Type:

    SOLID

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Termination:

    TIN

  • Contact Gender:

    FEMALE

  • Coupling Type:

    THREADED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    NICKEL

  • Shell Material:

    METAL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

T3403218 Overview

Use the download button to access the T3403218 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like T3403, or try a keyword search, such as Other Circular Connectors
