T4140412051-000 - TE Connectivity

Description: 5 Position Circular Connector, Wire-to-Panel, Sealable, Wire & Cable, Signal, Panel Mount, Reverse Gender, Nickel, Copper Alloy, B Code, M12 Connector

Download T4140412051-000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
T4140412051-000 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

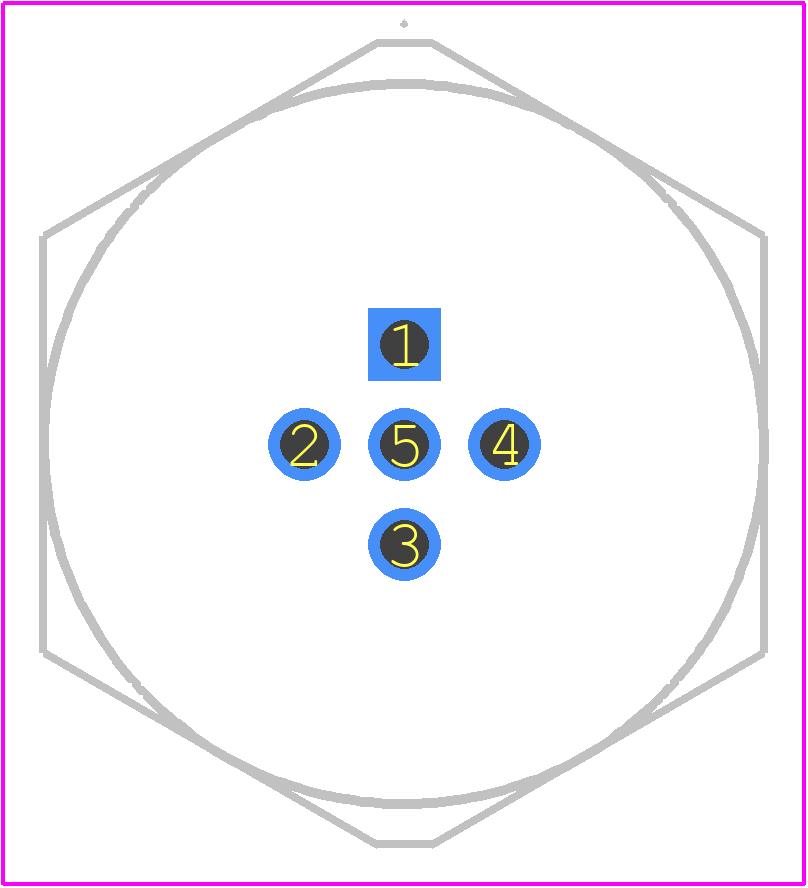

T4140412051-000 - TE Connectivity PCB footprint - Other - Other - T4140412051-000-7
click to zoom
3D Models
T4140412051-000 - TE Connectivity - 3D model - Other - T4140412051-000-7
click to zoom

T4140412051-000 Details

  • Manufacturer Part Number:

    T4140412051-000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Connector Type:

    CIRCULAR CONNECTOR

T4140412051-000 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 Nm to 1.5 Nm (4.4 in-lbs to 13.3 in-lbs) for the M2.5 screw thread.
  • Yes, the connector is designed to withstand high-vibration environments, with a tested vibration resistance of 10-2000 Hz, 10 G peak acceleration.
  • Yes, the connector is rated for operating temperatures from -40°C to 125°C (-40°F to 257°F) and can withstand humidity up to 95% RH. However, it's essential to follow the recommended storage and handling procedures to ensure reliability.
  • The connector is rated for a minimum of 500 mating cycles, ensuring reliable connections and minimizing the risk of wear and tear.
  • Yes, the connector is designed to be compatible with other TE Connectivity products and systems, including their range of PCB connectors and cable assemblies.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

T4140412051-000 Overview

Use the download button to access the T4140412051-000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like T4140, or try a keyword search, such as Other Circular Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
