T4141412041-000 - TE Connectivity

Description: Wire-to-Panel, 4 Position, Sealable, Wire & Cable, Signal, Panel Mount, Reverse Gender, Nickel, M12 Connector, Standard Circular Connectors

Download T4141412041-000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
T4141412041-000 - TE Connectivity - PCB symbol
click to zoom

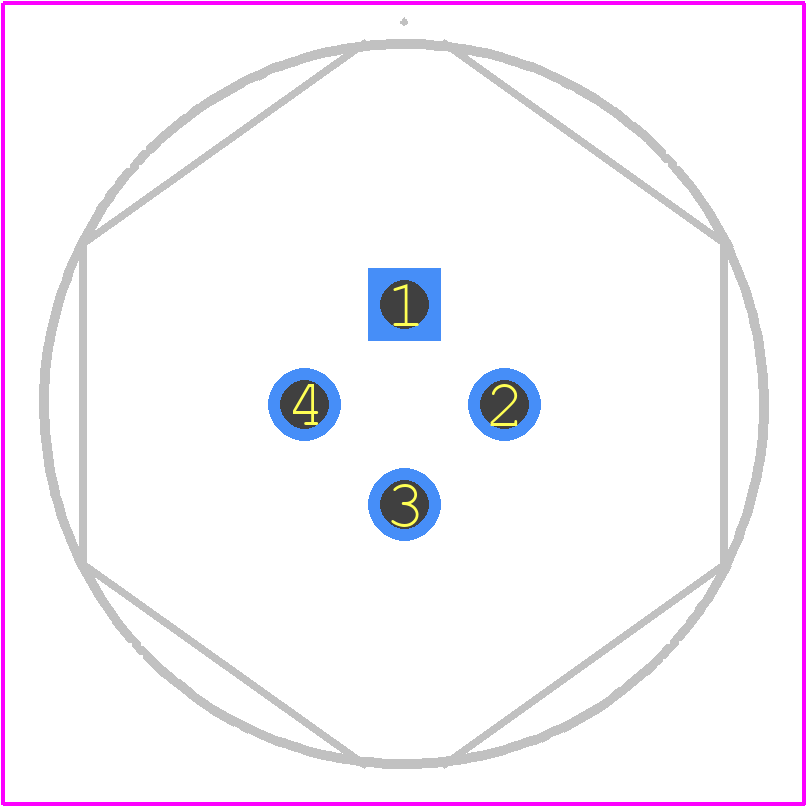

PCB Footprints
T4141412041-000 - TE Connectivity PCB footprint - Other - Other - T4141412041-000-3
click to zoom
3D Models
T4141412041-000 - TE Connectivity - 3D model - Other - T4141412041-000-3
click to zoom

T4141412041-000 Details

  • Manufacturer Part Number:

    T4141412041-000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Connector Type:

    CIRCULAR CONNECTOR

T4141412041-000 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 Nm to 1.5 Nm (4.4 in-lbs to 13.3 in-lbs) for the screw locks, and 0.2 Nm to 0.5 Nm (1.8 in-lbs to 4.4 in-lbs) for the jack screws.
  • Yes, the T4141412041-000 connector is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10 G peak acceleration.
  • Yes, the T4141412041-000 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C (-40°F to 257°F) and a humidity rating of 95% RH at 40°C (104°F).
  • The T4141412041-000 connector has a mating cycle life of 500 cycles minimum, with a maximum of 1000 cycles.
  • Yes, the T4141412041-000 connector is designed for PCB mounting, with a PCB thickness range of 1.57 mm to 2.36 mm (0.062 in to 0.093 in).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

T4141412041-000 Overview

Use the download button to access the T4141412041-000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like T4141, or try a keyword search, such as Other Circular Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
