T4144015041-000 - TE Connectivity

Description: Standard Circular Connectors, Wire-to-Panel, 4 Position, Sealable, Wire & Cable, Signal, Panel Mount, Reverse Gender, Nickel, M12 Connector

Download T4144015041-000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
T4144015041-000 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

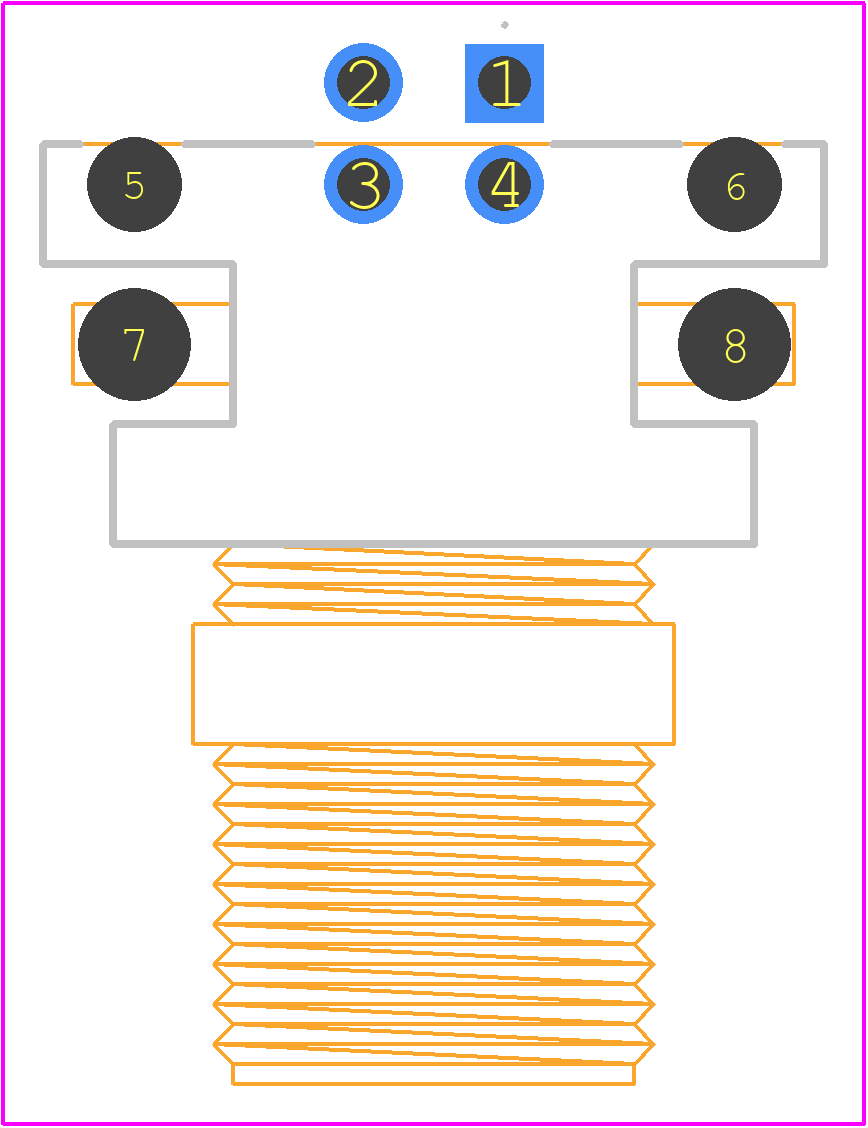

T4144015041-000 - TE Connectivity PCB footprint - Other - Other - T4144015041-000-3
click to zoom
3D Models
T4144015041-000 - TE Connectivity - 3D model - Other - T4144015041-000-3
click to zoom

T4144015041-000 Details

  • Manufacturer Part Number:

    T4144015041-000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(SIGNAL): 4A, POLARIZED

  • Backshell Type:

    SOLID

  • Body Depth:

    0.531 inch

  • Body Diameter:

    0.48 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    RND PIN-SKT

  • Coupling Type:

    THREADED

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYAMIDE66

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Polarization:

    A

  • Polarization Key:

    POLARIZED

  • Reference Standard:

    UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    COPPER ALLOY

  • Shell Size:

    12

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

T4144015041-000 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 Nm to 1.5 Nm (0.37 lbf-in to 1.06 lbf-in) for the screws on the T4144015041-000 connector, as specified in the TE Connectivity application notes.
  • Yes, the T4144015041-000 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, which ensures reliable performance in applications with high vibration levels.
  • Yes, the T4144015041-000 connector is suitable for outdoor use. It has a IP67 rating, which means it can withstand exposure to dust and water immersion up to 1 meter for 30 minutes.
  • The operating temperature range of the T4144015041-000 connector is -40°C to 125°C (-40°F to 257°F), making it suitable for a wide range of applications.
  • While the T4144015041-000 connector is designed for 24 AWG wire, it can accommodate wire sizes from 20 AWG to 26 AWG. However, the wire stripping length and insulation diameter may need to be adjusted accordingly.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

T4144015041-000 Overview

Use the download button to access the T4144015041-000 schematic symbol, PCB footprint, and 3D model.
