T4145015081-002 - TE Connectivity

Description: Wire-to-Panel, Circular Connector Receptacle, 8 Position, Shell Size 18, Sealable, Wire & Cable, Signal, Panel Mount & Board Mount, M12 Connector

Download T4145015081-002 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
T4145015081-002 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

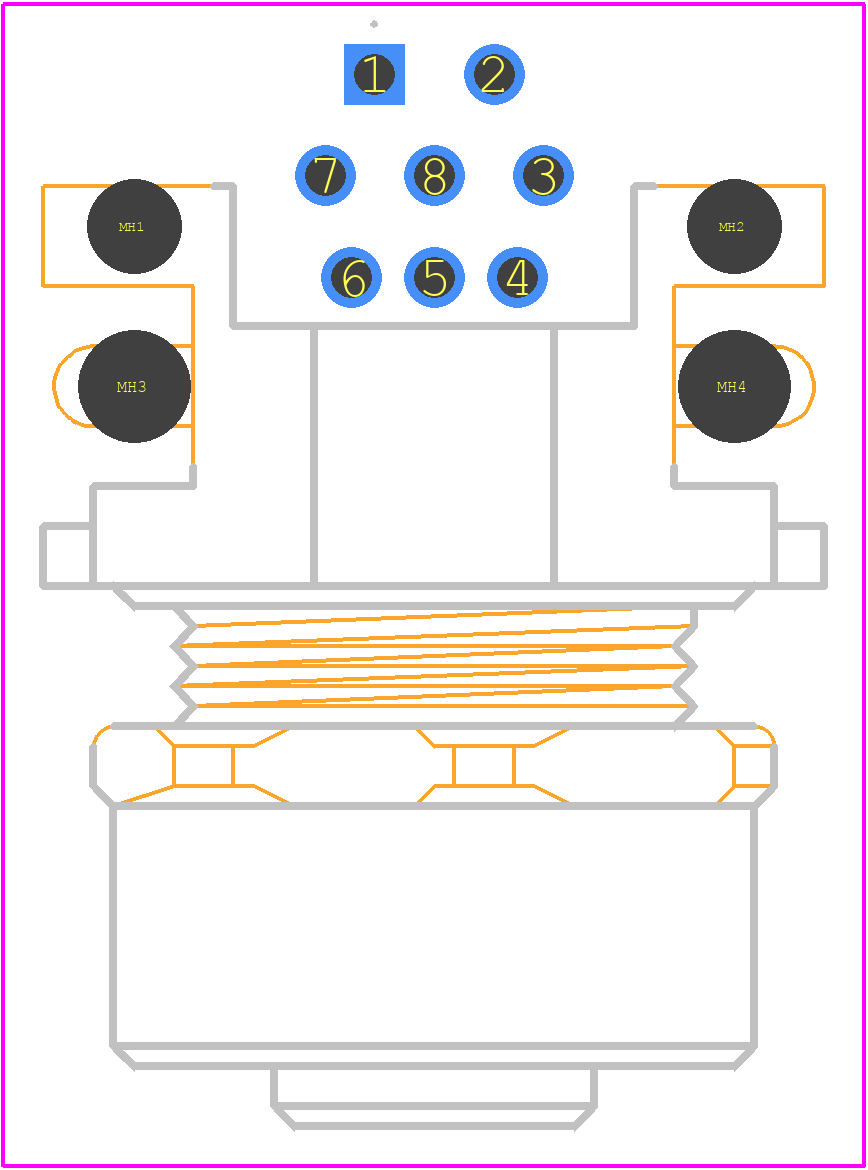

T4145015081-002 - TE Connectivity PCB footprint - Other - Other - T4145015081-002-2
click to zoom
3D Models
T4145015081-002 - TE Connectivity - 3D model - Other - T4145015081-002-2
click to zoom

T4145015081-002 Details

  • Manufacturer Part Number:

    T4145015081-002

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Factory Lead Time:

    15 Weeks, 1 Day

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(SIGNAL): 2A, RATED VOLTAGE: 30VAC, POLARIZED

  • Backshell Type:

    SOLID

  • Body Depth:

    0.551 inch

  • Body Diameter:

    0.48 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    RND PIN-SKT

  • Coupling Type:

    THREADED

  • DIN Conformance:

    NO

  • Other Description:

    M12, CIRCULAR CONNECTOR

  • EMI Shielded:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYAMIDE66

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Polarization:

    A

  • Polarization Key:

    POLARIZED

  • Rated Voltage:

    30 V

  • Reference Standard:

    UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    COPPER ALLOY

  • Shell Size:

    18

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

T4145015081-002 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type. It's essential to follow the recommended torque value to ensure reliable connections and prevent damage to the terminals.
  • Yes, the T4145015081-002 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, which ensures reliable performance in applications with high vibration levels.
  • The T4145015081-002 connector has a IP67 rating, which means it's protected against dust and water ingress. However, it's essential to ensure proper sealing and protection when using it in outdoor applications to maintain its performance and reliability.
  • The T4145015081-002 connector has an operating temperature range of -40°C to 125°C. It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate other wire sizes with proper termination and strain relief. However, it's essential to consult with TE Connectivity or a qualified engineer to ensure compatibility and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

T4145015081-002 Overview

Use the download button to access the T4145015081-002 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like T4145, or try a keyword search, such as Other Circular Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
