T4145035041-001 - TE Connectivity

Description: Body Features: Circular Connector Insulation Material Type Polyamide GF | Shell Base Material Brass | Shell Plating Material Nickel | Configuration Features: Number of Signal Positions 4 | Number of Power Positions 0 | Number of Positions 4 | Contact Features: Reverse Gender No | Circular Connector Contact Type Socket | Housing Features: Circular Connector Shell Size 12 | Industry Standards: UL Flammability Rating UL 94HB | Mechanical Attachment: Mating Alignment Type Keyed | Mating Retention With | Polariz

Download T4145035041-001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

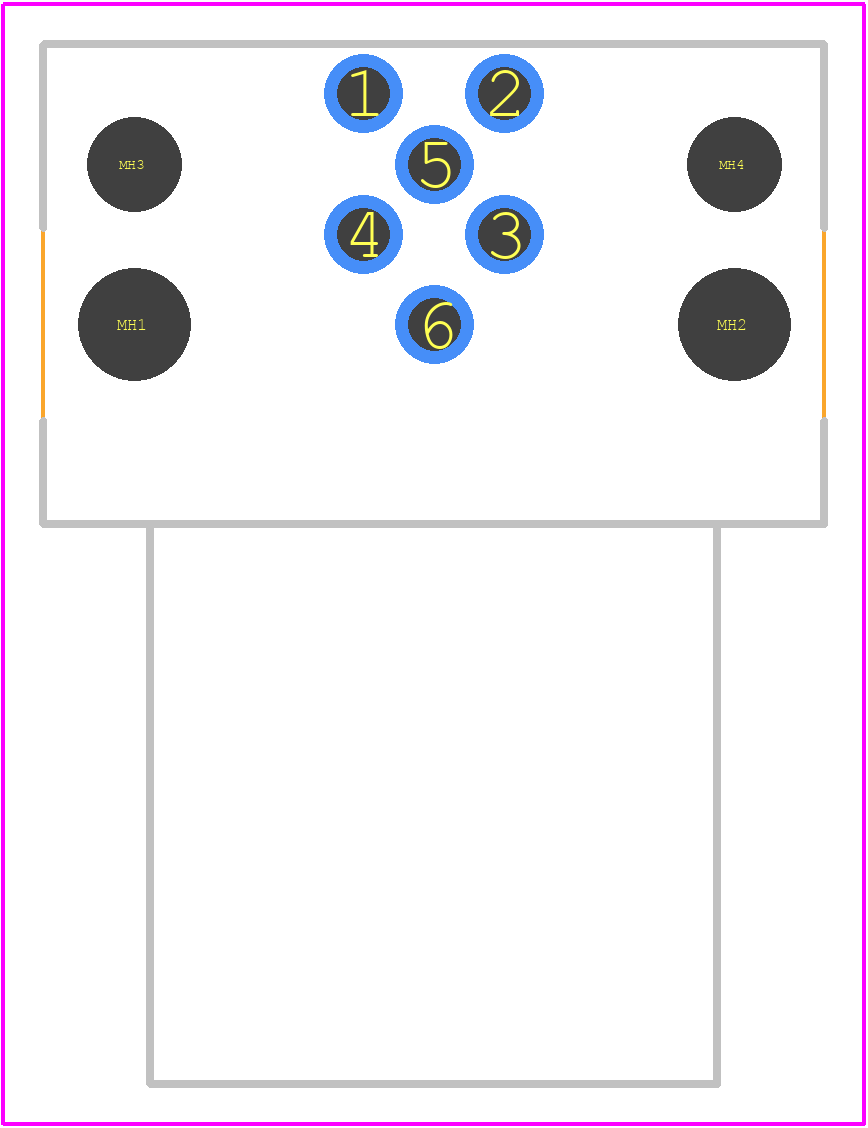

T4145035041-001 - TE Connectivity PCB footprint - Other - Other - T4145035041-001-2
click to zoom
3D Models
T4145035041-001 - TE Connectivity  - 3D model - Other - T4145035041-001-2
click to zoom

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

T4145035041-001 Overview

Use the download button to access the T4145035041-001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like T4145, or try a keyword search, such as Other Circular Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
