T4145035051-001 - TE Connectivity

Description: 5 Position Circular Connector, Wire-to-Panel, Sealable, Wire & Cable, Signal, Panel Mount & Board Mount, Reverse Gender, Nickel, M12 Connector

Download T4145035051-001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
T4145035051-001 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

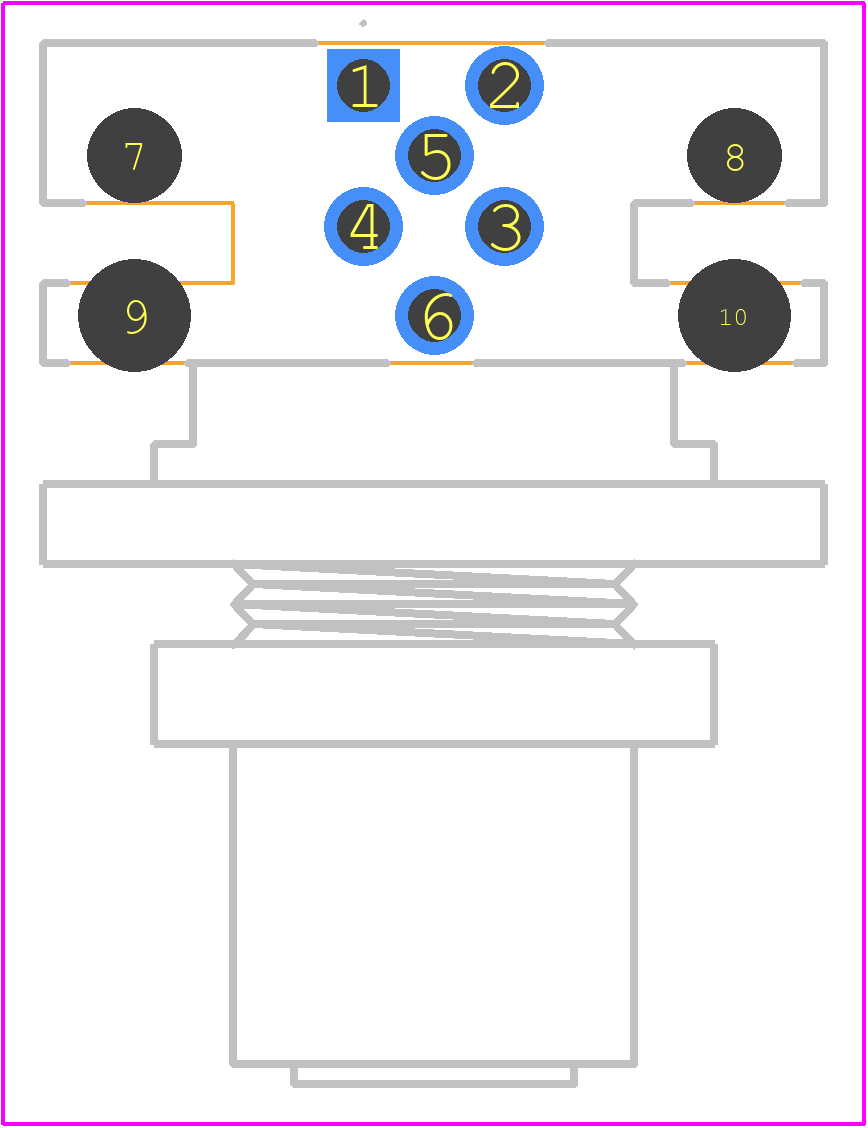

T4145035051-001 - TE Connectivity PCB footprint - Other - Other - T4145035051-001-3
click to zoom
3D Models
T4145035051-001 - TE Connectivity - 3D model - Other - T4145035051-001-3
click to zoom

T4145035051-001 Details

  • Manufacturer Part Number:

    T4145035051-001

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(SIGNAL): 4A, RATED VOLTAGE:60 VAC ,POLARIZED

  • Backshell Type:

    SOLID

  • Body Depth:

    0.551 inch

  • Body Diameter:

    0.48 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    RND PIN-SKT

  • Coupling Type:

    THREADED

  • DIN Conformance:

    NO

  • EMI Shielded:

    YES

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYAMIDE66

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Polarization:

    A

  • Polarization Key:

    POLARIZED

  • Reference Standard:

    UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    COPPER ALLOY

  • Shell Size:

    12

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    5

T4145035051-001 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.6 Nm (5.3 in-lbs) for the screw terminals, but it's always best to consult the datasheet or contact TE Connectivity for specific guidance.
  • Yes, the T4145035051-001 is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure connections to prevent damage or disconnection.
  • The T4145035051-001 has a IP67 rating, making it suitable for outdoor or harsh environmental applications. However, it's crucial to ensure proper sealing and protection from extreme temperatures, moisture, and contaminants.
  • The T4145035051-001 is designed for use with 24-20 AWG wire. Using a different wire gauge or type may affect the connector's performance and reliability. Consult the datasheet or contact TE Connectivity for guidance on wire compatibility.
  • The T4145035051-001 has an operating temperature range of -40°C to 125°C (-40°F to 257°F). Exceeding this range may affect the connector's performance and reliability.
