T4145035081-002 - TE Connectivity

Description: 8 Position Circular Connector, Wire-to-Panel, Sealable, Wire & Cable, Signal, Panel Mount, Reverse Gender, Nickel, Copper Alloy, A Code, M12 Connector

Download T4145035081-002 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
T4145035081-002 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

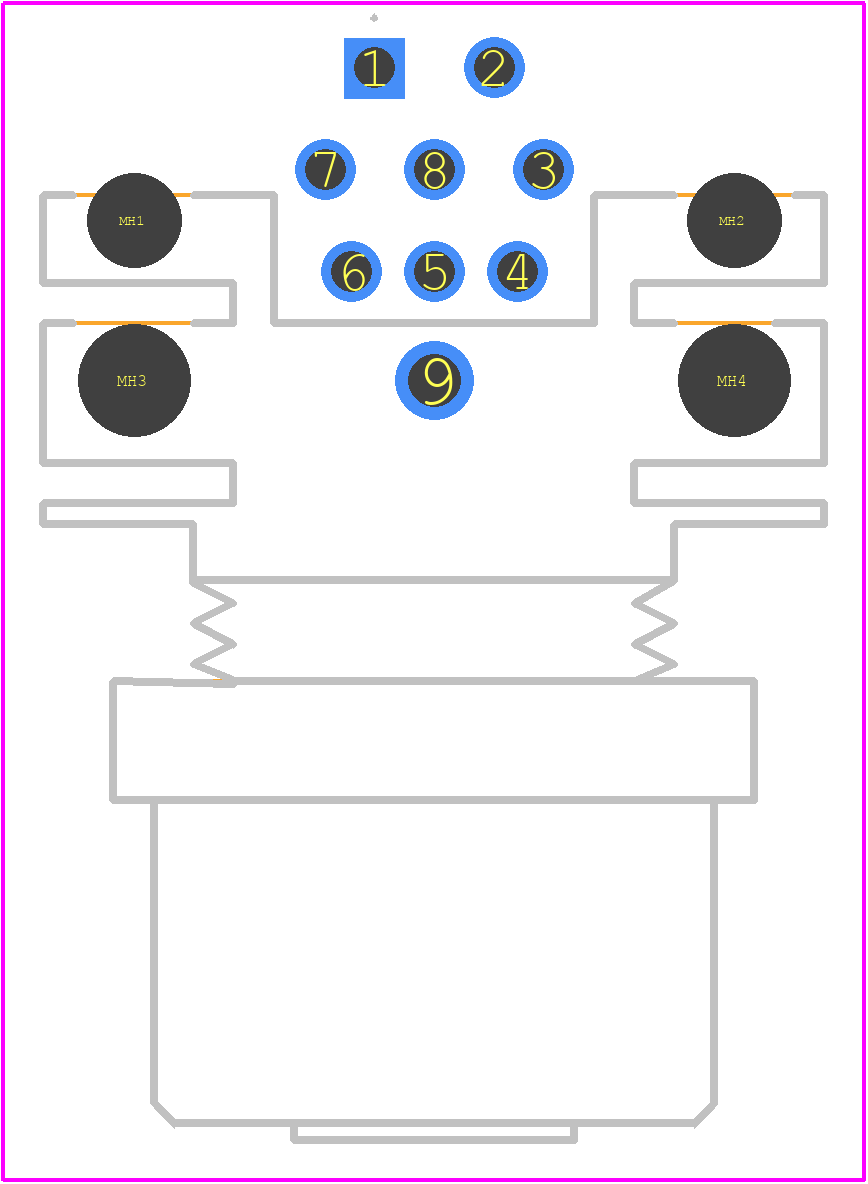

T4145035081-002 - TE Connectivity PCB footprint - Other - Other - T4145035081-002-3
click to zoom
3D Models
T4145035081-002 - TE Connectivity - 3D model - Other - T4145035081-002-3
click to zoom

T4145035081-002 Details

  • Manufacturer Part Number:

    T4145035081-002

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(SIGNAL): 2A, RATED VOLTAGE: 30VAC, POLARIZED

  • Backshell Type:

    SOLID

  • Body Depth:

    0.551 inch

  • Body Diameter:

    0.48 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    RND PIN-SKT

  • Coupling Type:

    THREADED

  • DIN Conformance:

    NO

  • Other Description:

    M12, CIRCULAR CONNECTOR

  • EMI Shielded:

    YES

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYAMIDE66

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Polarization:

    A

  • Polarization Key:

    POLARIZED

  • Rated Voltage:

    30 V

  • Reference Standard:

    UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    COPPER ALLOY

  • Shell Size:

    18

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

T4145035081-002 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.6 Nm (5.3 in-lbs) for the screw terminals, but it's always best to consult the datasheet or contact TE Connectivity for specific guidance.
  • Yes, the T4145035081-002 is designed to withstand vibrations and is suitable for use in harsh environments. However, it's essential to ensure proper mounting and secure connections to prevent damage or disconnection.
  • The operating temperature range for the T4145035081-002 is -40°C to 125°C (-40°F to 257°F). However, it's crucial to consider the specific application and environmental conditions to ensure reliable performance.
  • The T4145035081-002 has a IP67 rating, which means it's protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's essential to ensure proper sealing and protection against environmental factors.
  • The T4145035081-002 is designed for use with 24-18 AWG wire. Using a different wire gauge or type may affect the connector's performance and reliability. Consult the datasheet or contact TE Connectivity for guidance on wire compatibility.
