T4145515051-001 - TE Connectivity

Description: Body Features: Shell Base Material Brass | Shell Plating Material Nickel | Circular Connector Insulation Material Type Polyamide GF | Configuration Features: Number of Power Positions 0 | Number of Positions 5 | Number of Signal Positions 5 | Contact Features: Reverse Gender No | Circular Connector Contact Type Socket | Housing Features: Circular Connector Shell Size 12 | Industry Standards: UL Flammability Rating UL 94HB | Mechanical Attachment: Polarization Code D | Connector Mounting Type Panel Mount | M

Download T4145515051-001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

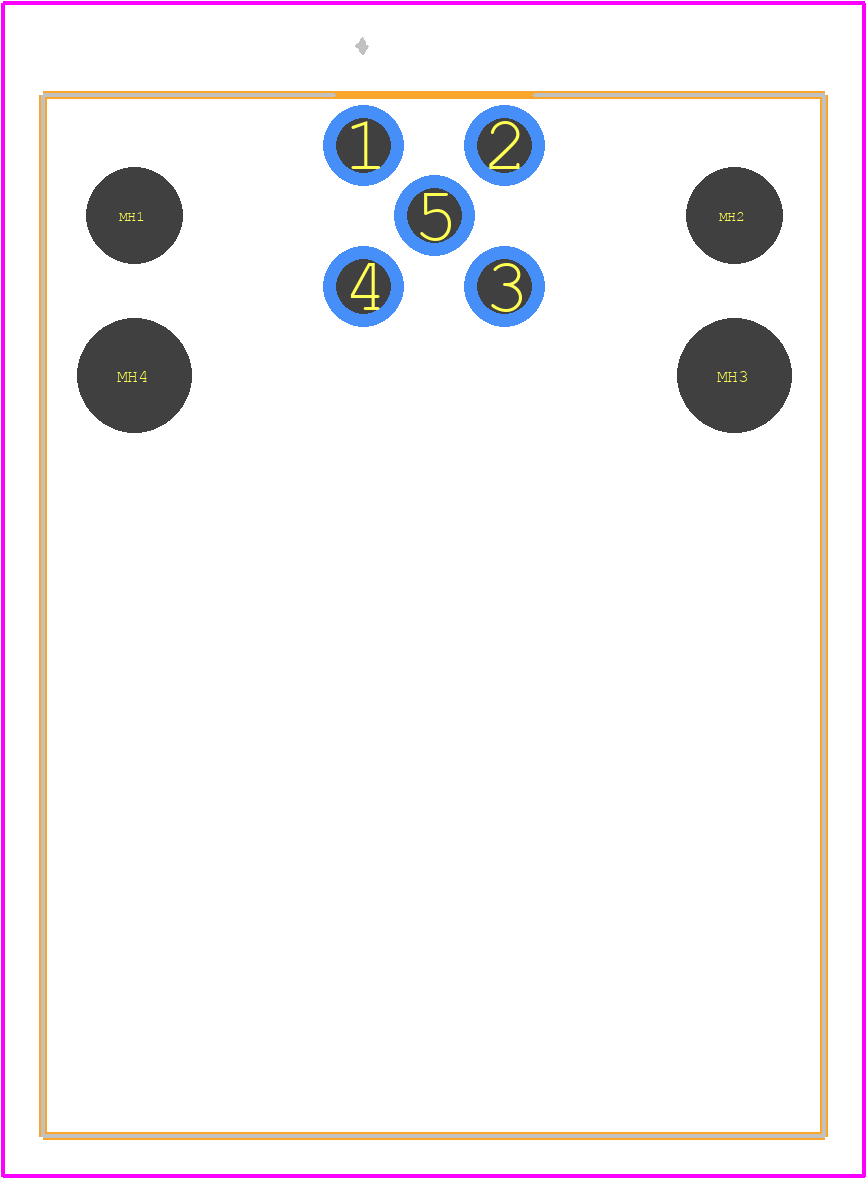

T4145515051-001 - TE Connectivity PCB footprint - Other - Other - T4145515051-001-2
click to zoom
3D Models
T4145515051-001 - TE Connectivity  - 3D model - Other - T4145515051-001-2
click to zoom

T4145515051-001 Details

  • Manufacturer Part Number:

    T4145515051-001

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Factory Lead Time:

    19 Weeks

  • Manufacturer:

    TE Connectivity

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Type:

    PANEL

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Polarization:

    D

  • Polarization Key:

    POLARIZED

  • Shell Finish:

    NICKEL

  • Shell Material:

    BRASS

  • Shell Size:

    12

  • Total Number of Contacts:

    5

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

T4145515051-001 Overview

Use the download button to access the T4145515051-001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like T4145, or try a keyword search, such as Other Circular Connectors
