T4145535031-001 - TE Connectivity

Description: Body Features: Circular Connector Insulation Material Type Polyamide GF | Shell Base Material Brass | Shell Plating Material Nickel | Configuration Features: Number of Power Positions 0 | Number of Positions 3 | Number of Signal Positions 3 | Contact Features: Circular Connector Contact Type Socket | Reverse Gender No | Housing Features: Circular Connector Shell Size 12 | Industry Standards: UL Flammability Rating UL 94HB | Mechanical Attachment: Polarization Code D | Mating Alignment Type Keyed | Connector

Download T4145535031-001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

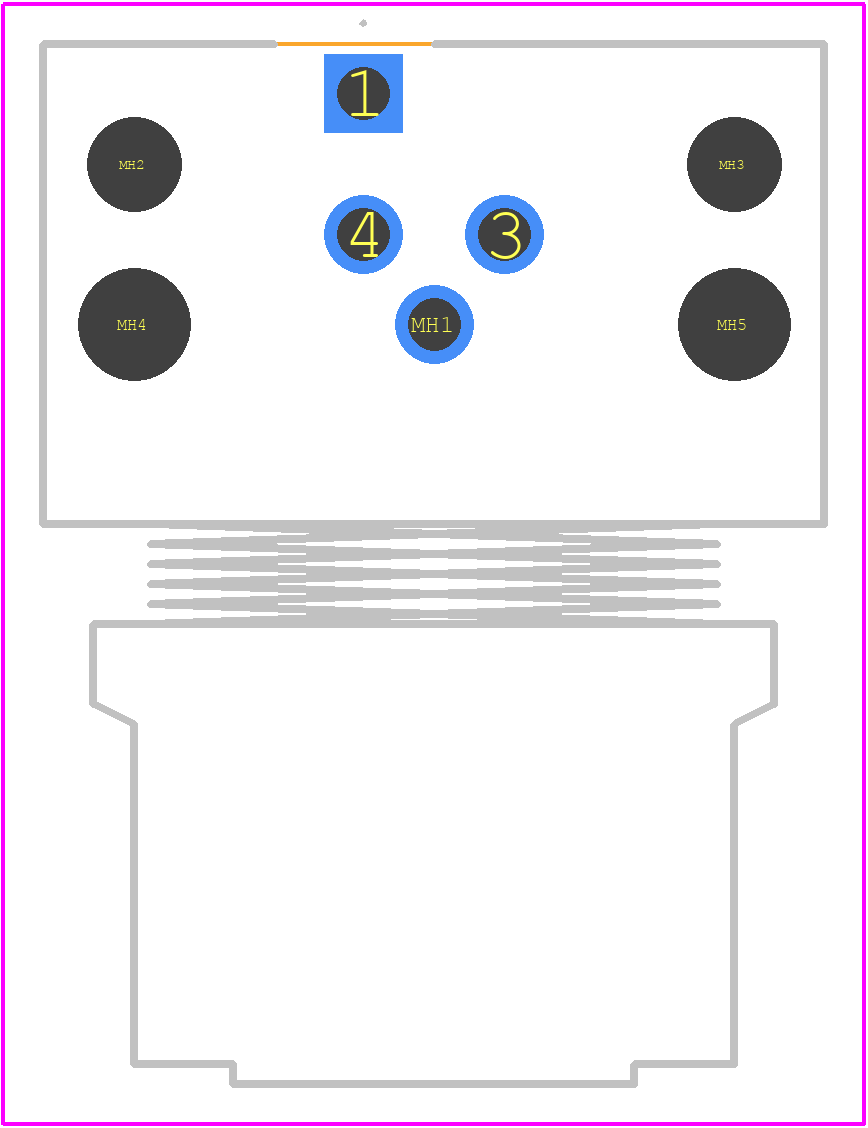

T4145535031-001 - TE Connectivity PCB footprint - Other - Other - T4145535031-001-2
