T4240NSE7PQB - NXP

Description: QorIQ, 64b Power Arch, 24x 1.5GHz threads, 1.6GT/s DDR3L, 4x10GE, crypto enabled, 0-105C, Rev 2.0

Download T4240NSE7PQB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
T4240NSE7PQB - NXP - PCB symbol
click to zoom
PCB Footprints

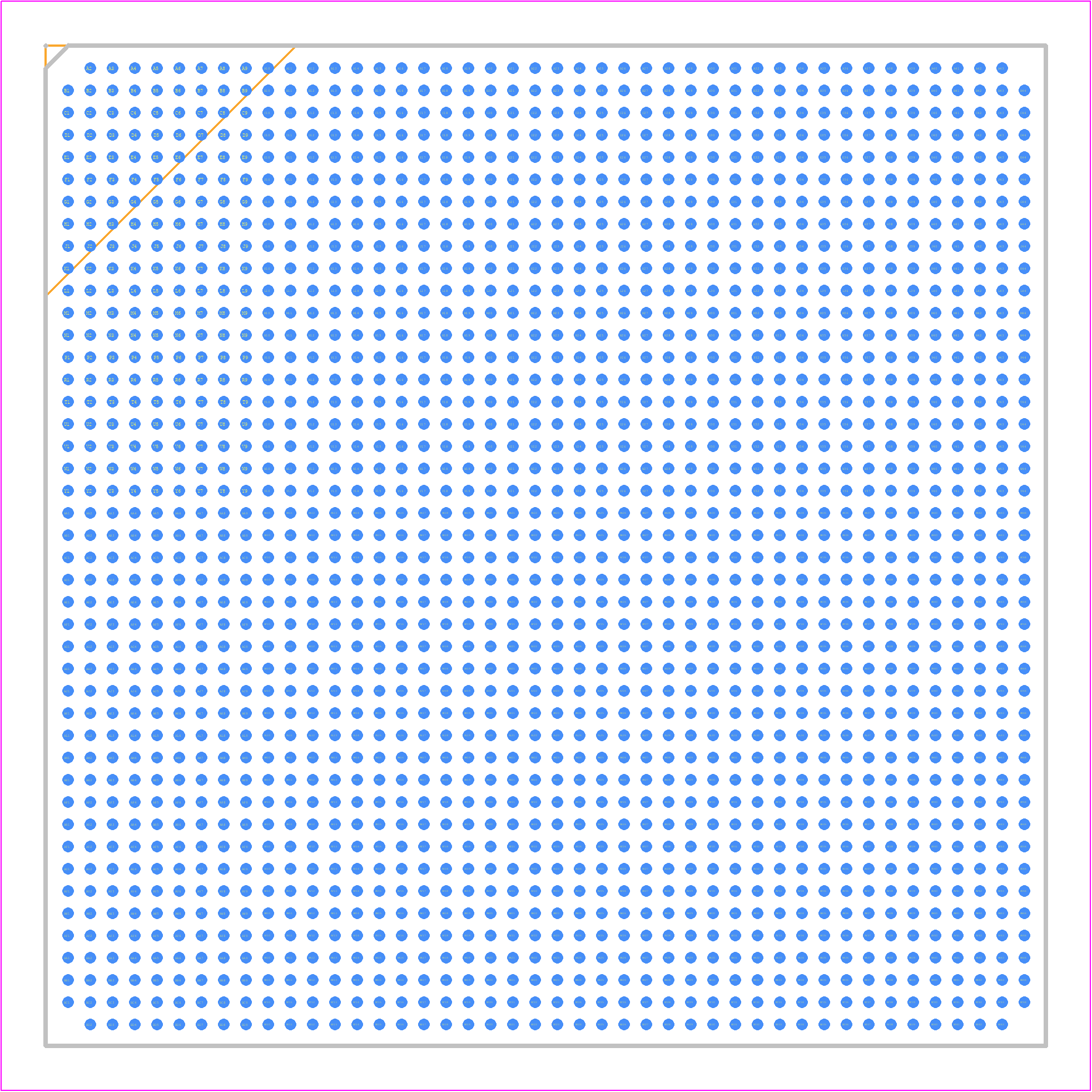

T4240NSE7PQB - NXP PCB footprint - BGA - BGA - SOT1645-1
click to zoom
3D Models
T4240NSE7PQB - NXP - 3D model - BGA - SOT1645-1
click to zoom

T4240NSE7PQB Details

  • Manufacturer Part Number:

    T4240NSE7PQB

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FCBGA-1932

  • ECCN Code:

    5A002.A.1

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2017-01-04

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    9

  • Address Bus Width:

    16

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    133.3 MHz

  • External Data Bus Width:

    64

  • Format:

    FIXED POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-PBGA-B1932

  • JESD-609 Code:

    e1

  • Length:

    45 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    1932

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    250

  • Seated Height-Max:

    3.33 mm

  • Speed:

    1500 MHz

  • Supply Voltage-Max:

    1.055 V

  • Supply Voltage-Min:

    0.995 V

  • Supply Voltage-Nom:

    1.025 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    45 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR, RISC

T4240NSE7PQB Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply power to the VDD_CORE and VDD_SOC rails simultaneously, followed by the VDD_PLL and VDD_DDR rails. This ensures proper initialization of the processor and peripherals.
  • To configure the T4240NSE7PQB for low-power operation, you can use the Power Management Unit (PMU) to control the power modes of the processor and peripherals. You can also use the Dynamic Voltage and Frequency Scaling (DVFS) feature to reduce power consumption.
  • The maximum operating temperature range for the T4240NSE7PQB is -40°C to 125°C. However, it's recommended to operate the device within the commercial temperature range of 0°C to 105°C for optimal performance and reliability.
  • To implement secure boot on the T4240NSE7PQB, you can use the Secure Boot feature, which uses a combination of hardware and software mechanisms to ensure that only authorized firmware is executed on the device. This includes using a secure boot loader, encrypting firmware images, and verifying digital signatures.
  • The maximum bandwidth of the PCIe interface on the T4240NSE7PQB is 5 GT/s (gigatransfers per second) per lane, with a maximum of 8 lanes available. This translates to a maximum bandwidth of 40 Gb/s (gigabits per second).
